Stator Coil For Yamaha YFM350FX 4x4 YFM40 Big Bear YFM350R YFM350X via fedex
Stator Coil For Yamaha YFM350FX 4x4 YFM40 Big Bear YFM350R YFM350X via fedex
Couldn't load pickup availability
SPECIFICATIONS:
Condition: Aftermarket 100% Brand New
Quanity: 1PC

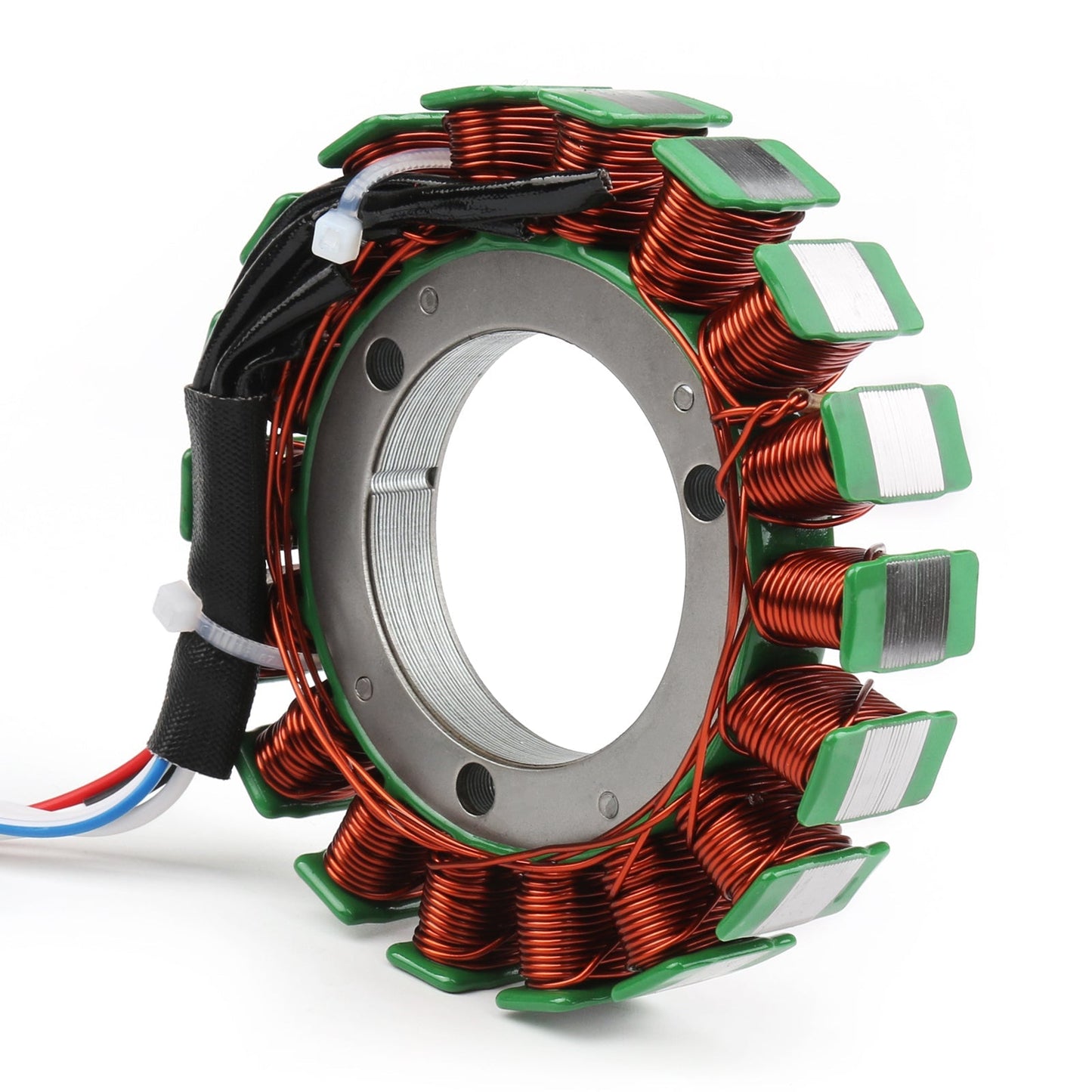

Type: Generator Stator Coil
Replacement Part Number:5NF-81410-00

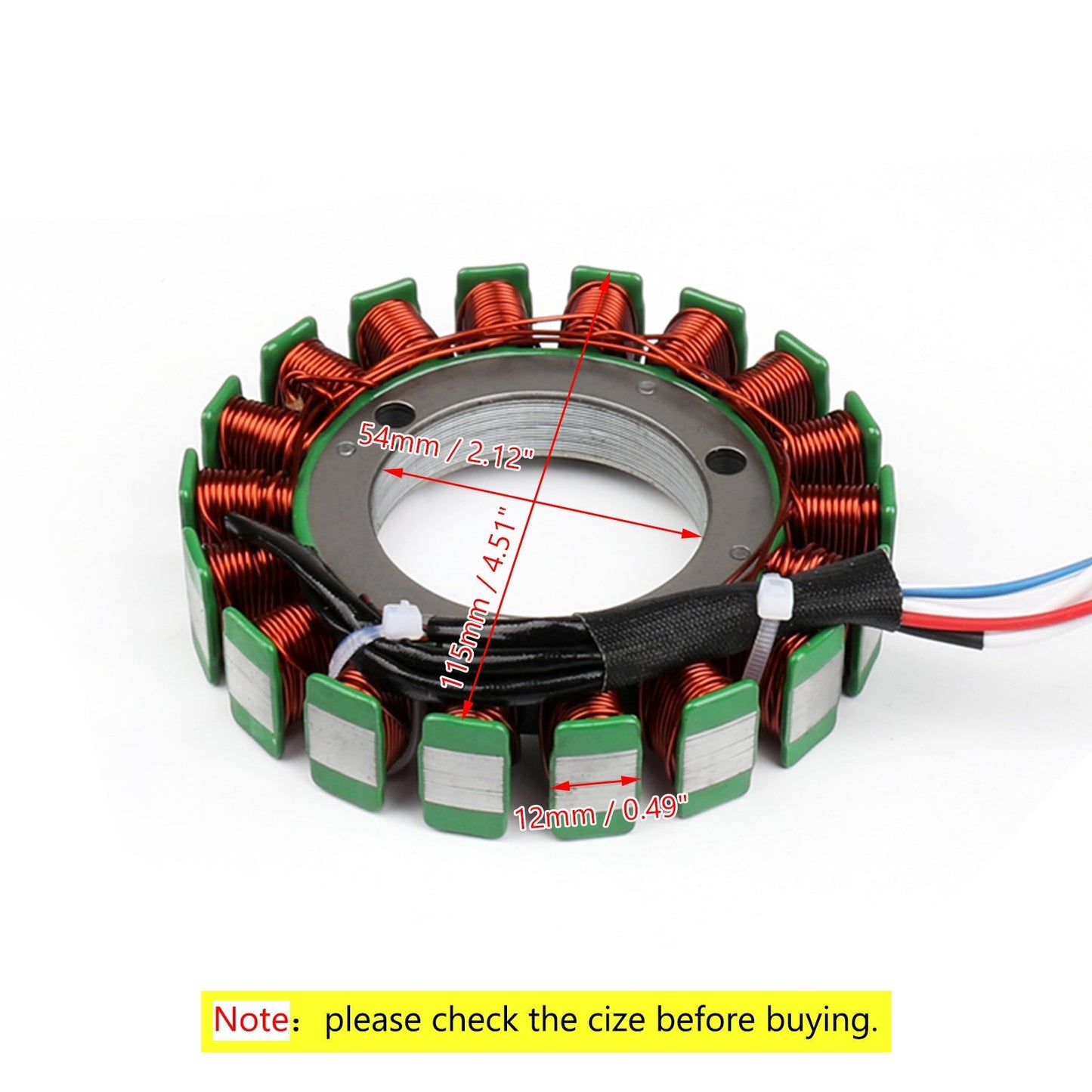

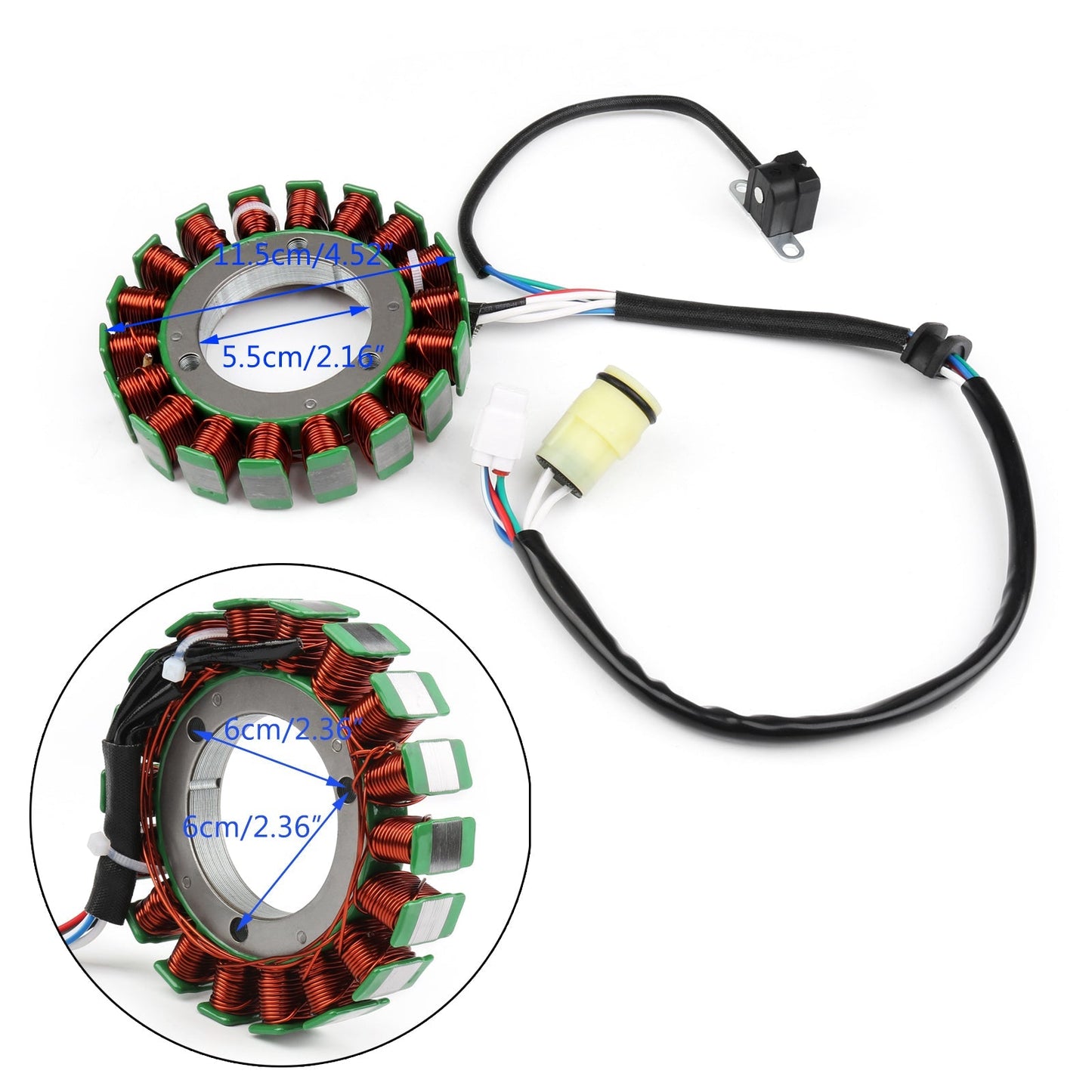

Dimensions :
Interior diameter : 54mm / 2.12"
Exterior diameter : 115mm / 4.51"
Thickness : 12mm / 0.49"
Other specifications :
Number of wires: 7
Number of pins: 7
Number of plugs: 2
Number of fixation holes: 3

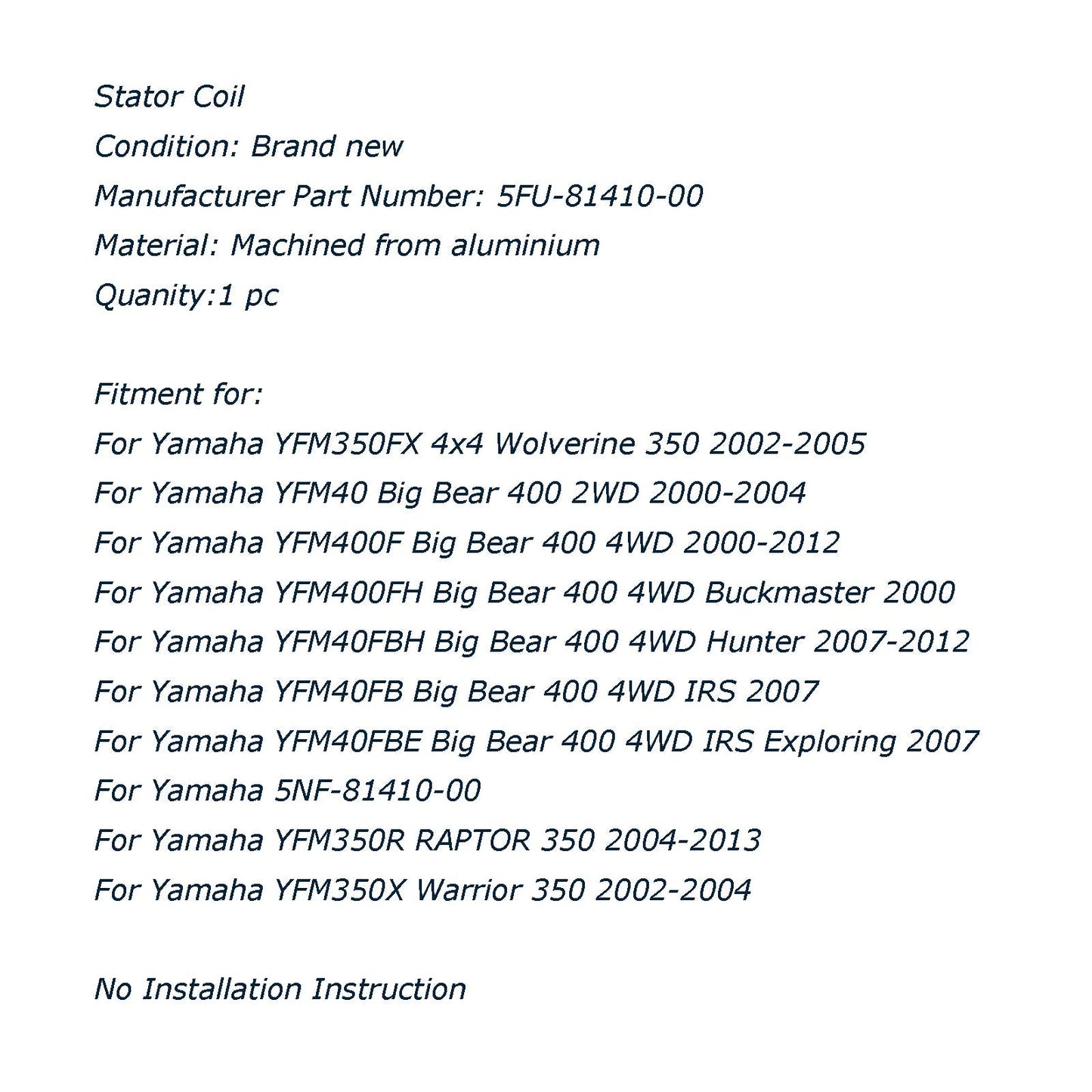

FITMENT:
For Yamaha YFM350FX 4x4 Wolverine 350 2002-2005
For Yamaha YFM40 Big Bear 400 2WD 2000-2004
For Yamaha YFM400F Big Bear 400 4WD 2000-2012
For Yamaha YFM400FH Big Bear 400 4WD Buckmaster 2000
For Yamaha YFM40FBH Big Bear 400 4WD Hunter 2007-2012
For Yamaha YFM40FB Big Bear 400 4WD IRS 2007
For Yamaha YFM40FBE Big Bear 400 4WD IRS Exploring 2007
For Yamaha 5NF-81410-00
For Yamaha YFM350R RAPTOR 350 2004-2013
For Yamaha YFM350X Warrior 350 2002-2004
FEATURES:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.

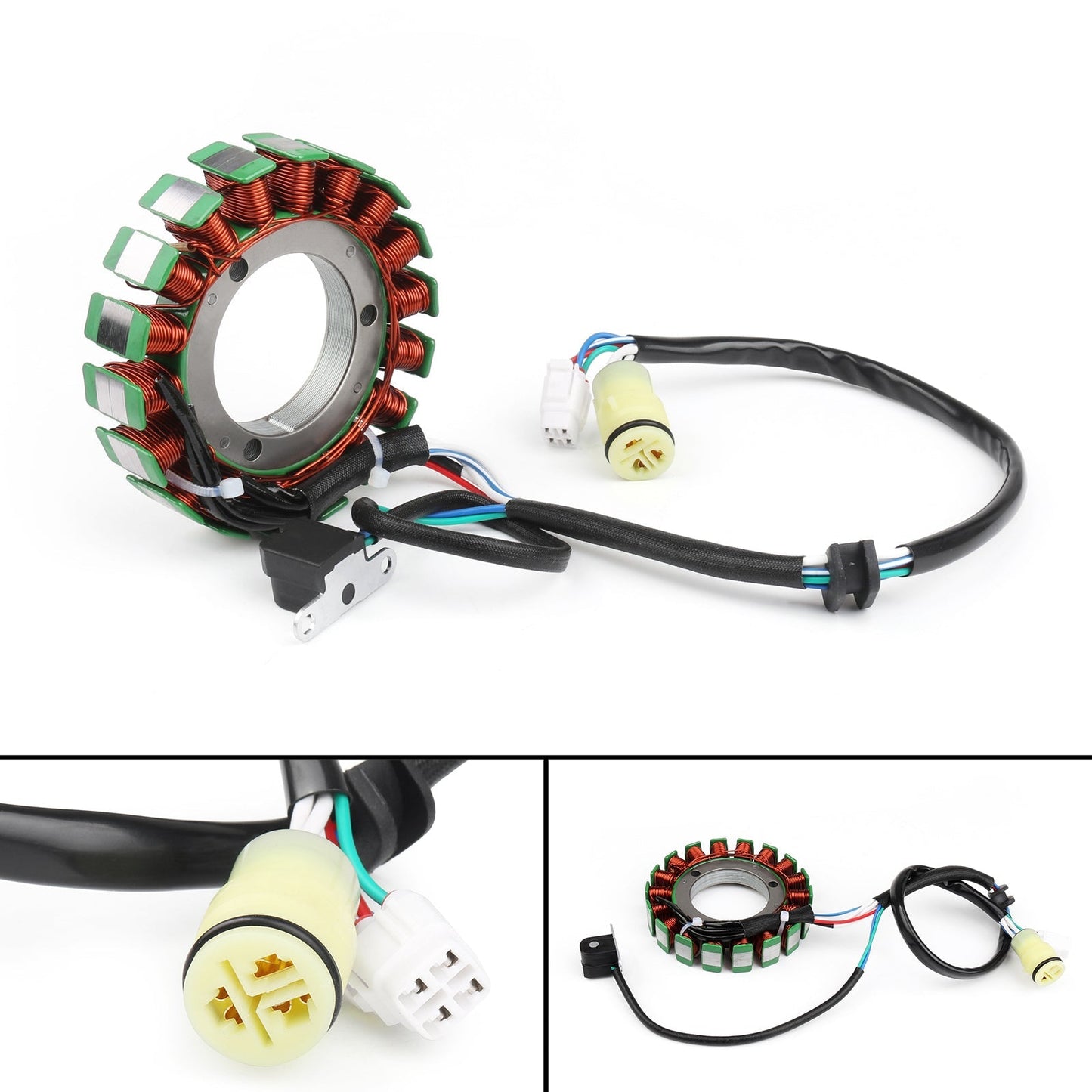

Pick up pulsar coil included.
Connector included.
All products shipped are tested.
PACKAGE INCLUDED:
1x Generator Stator Coil
NOTICE:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Shipping:
Free Shipping
Handling time: Ship within 24 hours
Delivery Time: 3-7 business days
Warranty:
1. Condition: 100% Brand New
2. Warranty Period: 1 Years
3. 24-Hour Support: Provide you with timely after-sale support
