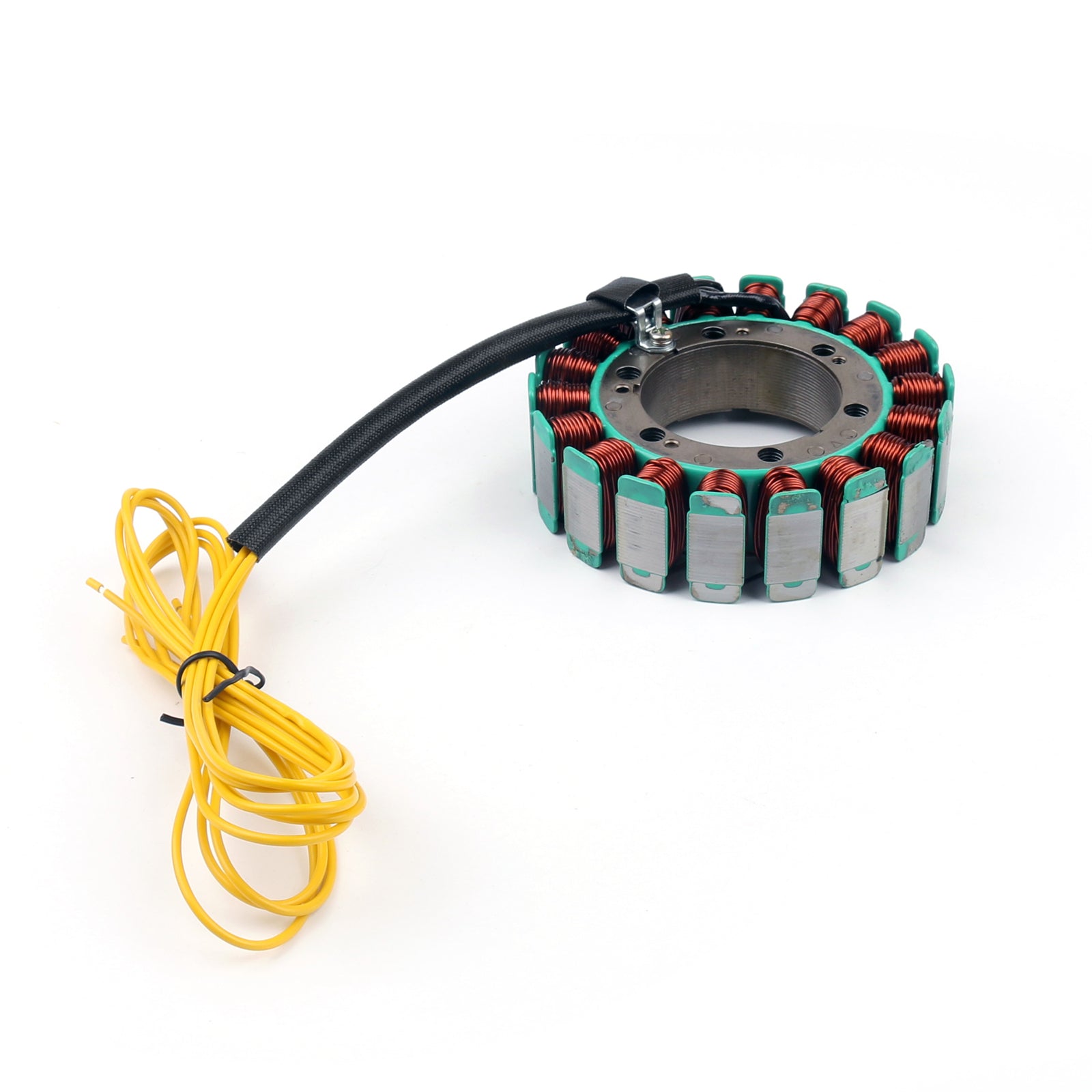

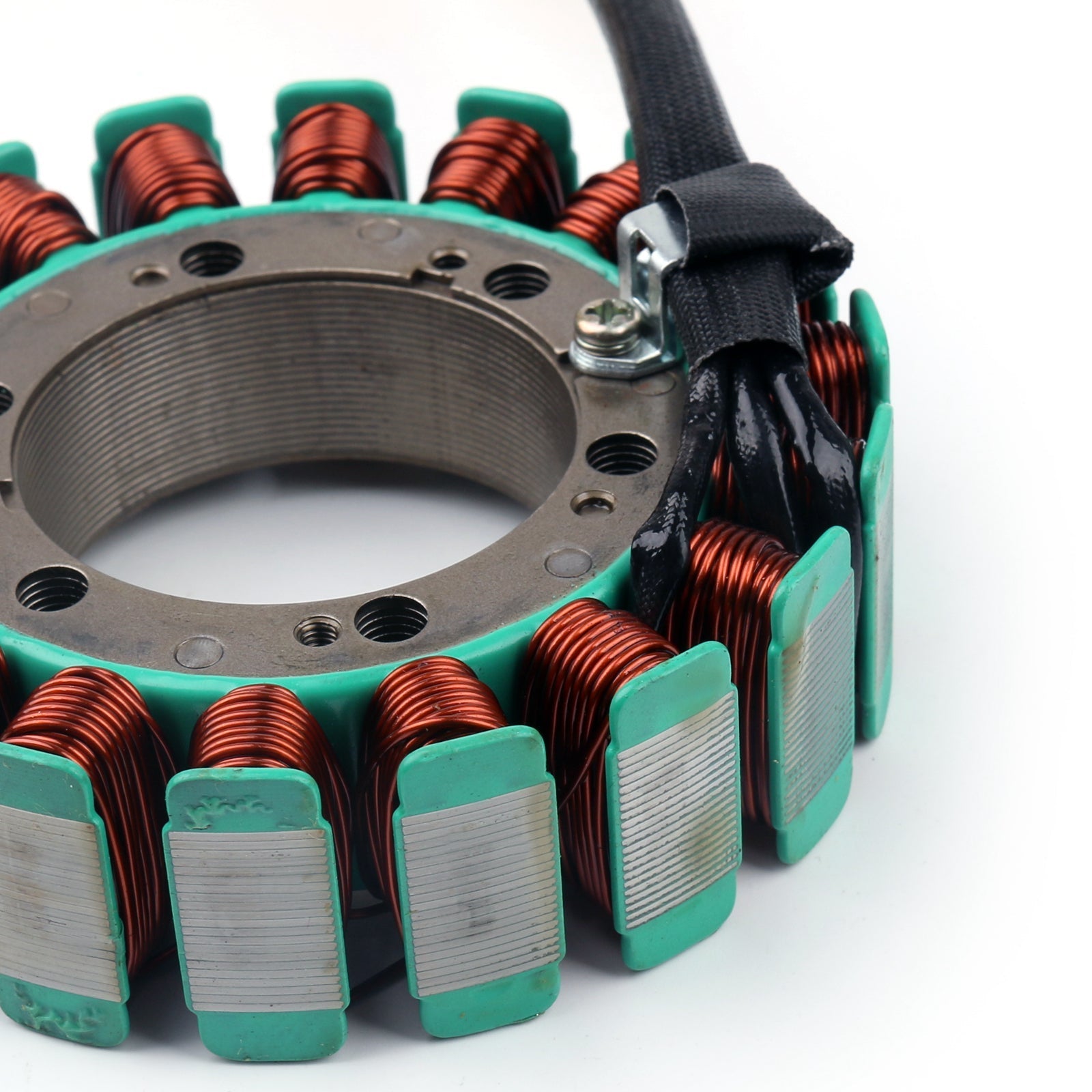

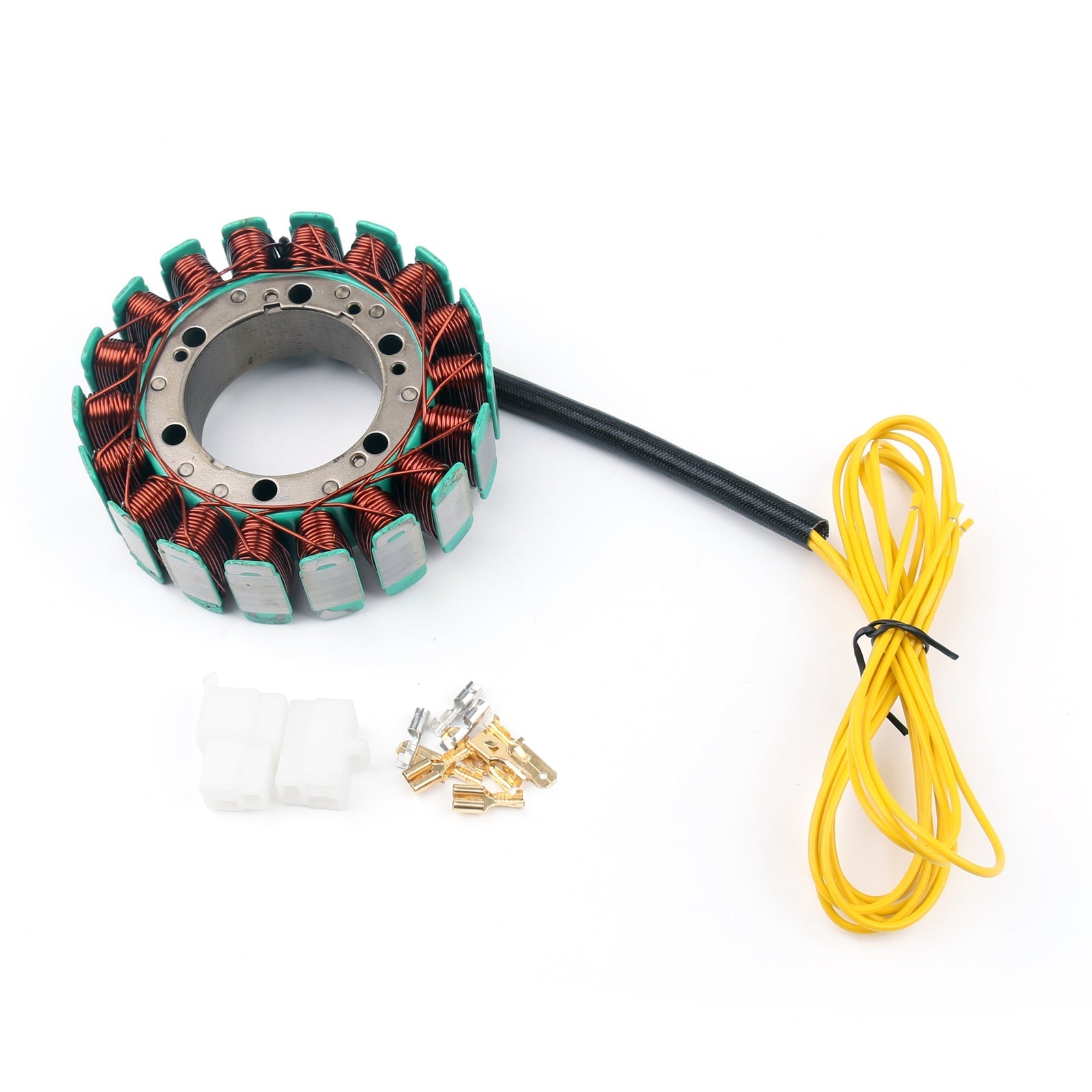

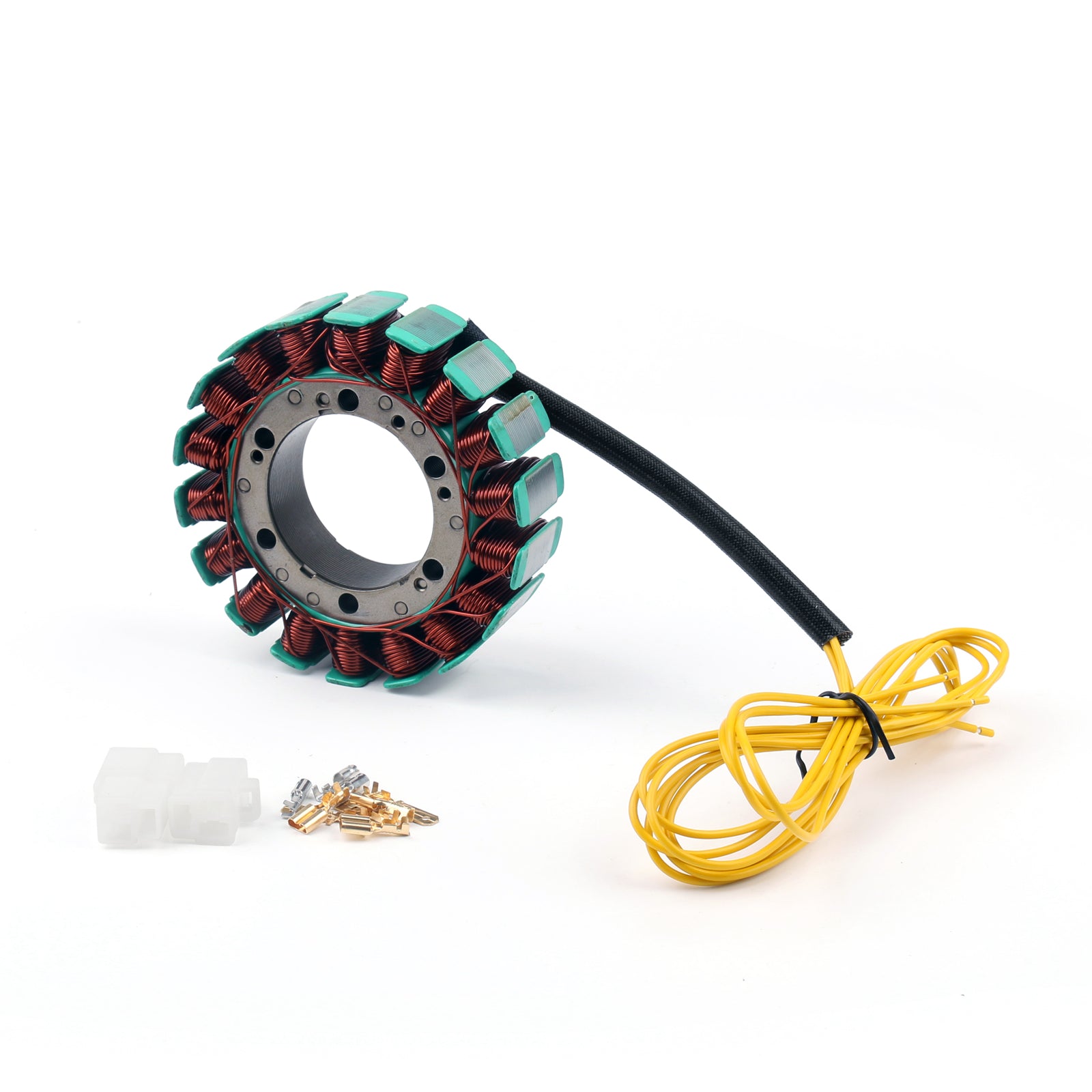

Stator Coil For Honda XRV750 VF1000F VFR700 VFR750F XLV600 XL600 VF700 VF1000 via fedex
Stator Coil For Honda XRV750 VF1000F VFR700 VFR750F XLV600 XL600 VF700 VF1000 via fedex
Couldn't load pickup availability
?
SPECIFICATIONS:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil
Dimensions :
Interior diameter : 54mm / 2.11"
Exterior diameter : 115mm / 4.52"
Thickness : 11mm / 0.45"
Other specifications :
Number of fixation holes: 5
FITMENT:
For Honda XRV750 Africa Twin 1993-2003
For Honda VF1000F 1984/VF1000R 1984-1986
For Honda VFR700 1986-1987
For Honda VFR750F INTERCEPTOR 1986-1989
For Honda XLV600 XL600 TRANSALP 1987-1999
For Honda VF700 (Magna)1984-1987
For Honda VF750 (Magna)1982-1992
For Honda VF1000 (Interceptor)1984-1986
FEATURES:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Connector included.
All products shipped are tested.
PACKAGE INCLUDED:
1x Generator Stator Coil
NOTICE:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Shipping:
Free Shipping
Handling time: Ship within 24 hours
Delivery Time: 3-7 business days
Warranty:
1. Condition: 100% Brand New
2. Warranty Period: 1 Years
3. 24-Hour Support: Provide you with timely after-sale support
