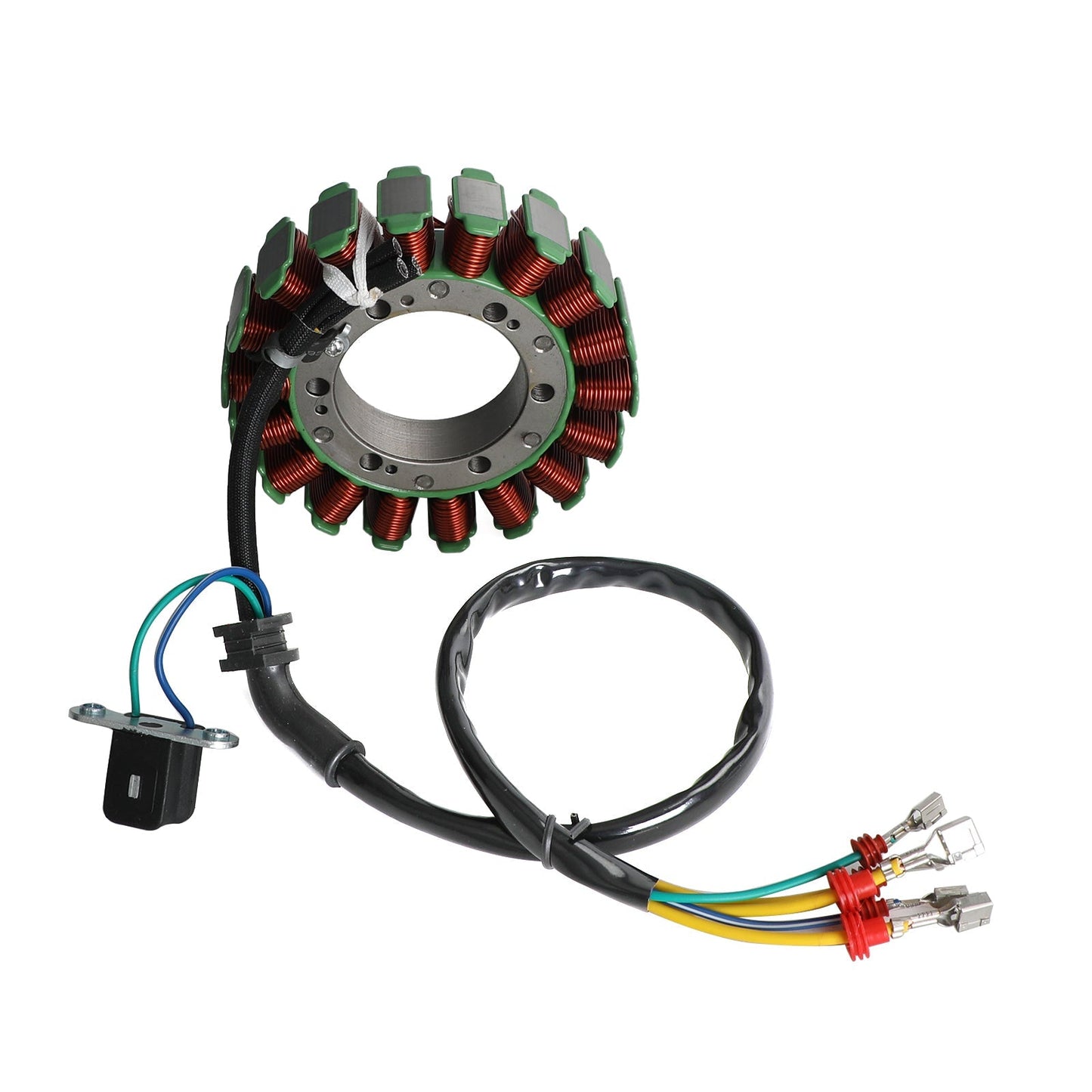

09-13 Honda MUV 700 Big Red 700 Stator Alternator 31120-HL1-A02

Name: 09-13 Honda MUV 700 Big Red 700 Stator Alternator 31120-HL1-A02
Brand: Assosary
SKU: M550-A618
Price: 58.89 EUR
Availability: InStock

€58,89 EUR

Sale Sold out

Shipping calculated at checkout.

Quantity

Replacement Part Number:
31120-HL1-A01
31120-HL1-A02

Fitments:
Fit for Honda MUV700 AC Big Red 700 2013
Fit for Honda MUV700 2AC Big Red 700 2013
Fit for Honda MUV700 A Big Red 700 2009-2012
Fit for Honda MUV700 2A Big Red 700 2009-2012
Fit for Honda MUV700 3A Big Red 700 2010-2011

Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC

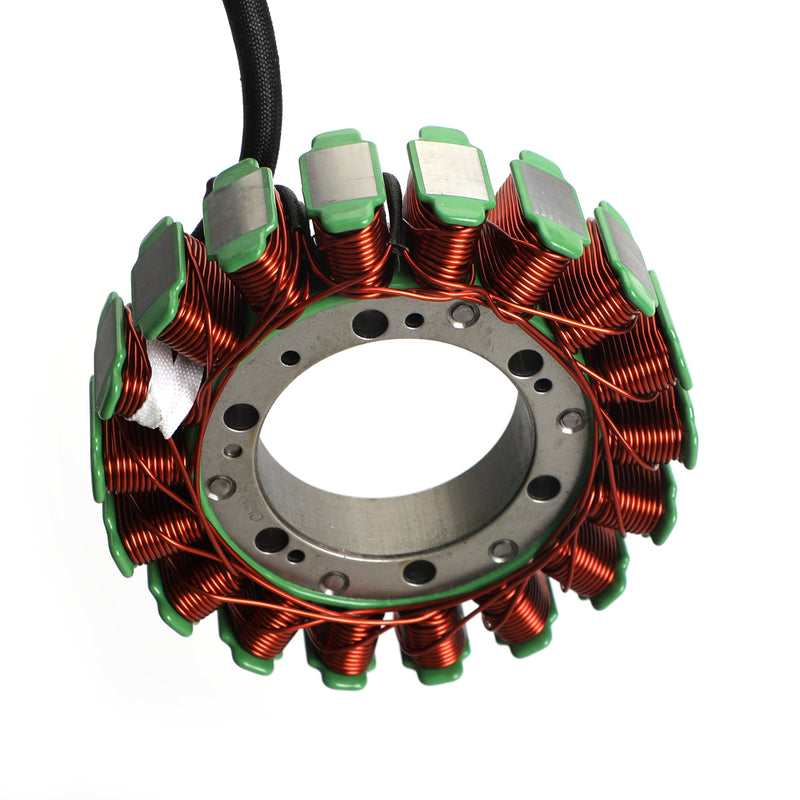

Type: Generator Stator Coil

Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.

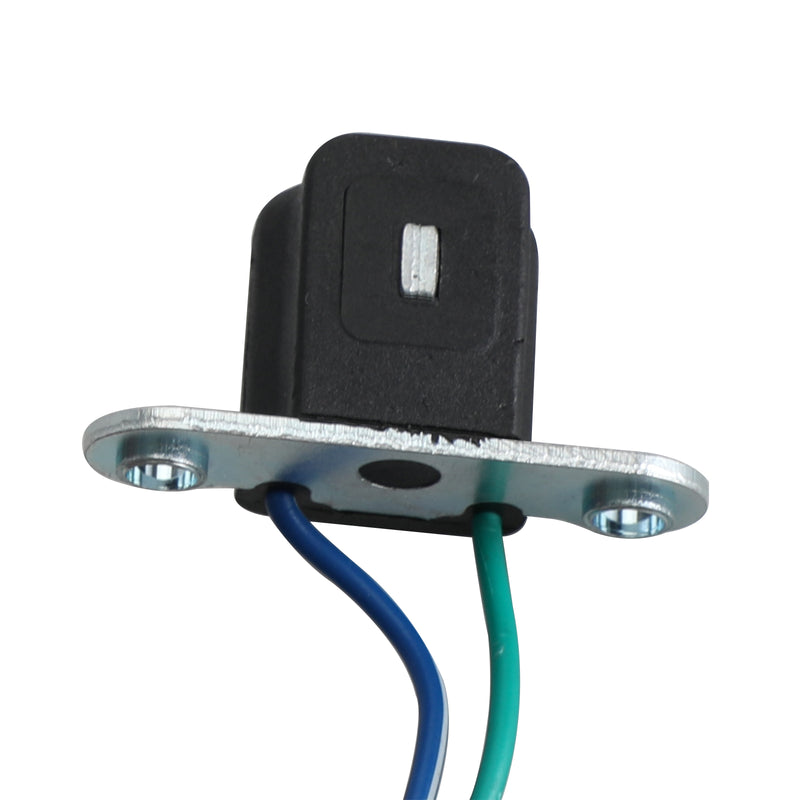

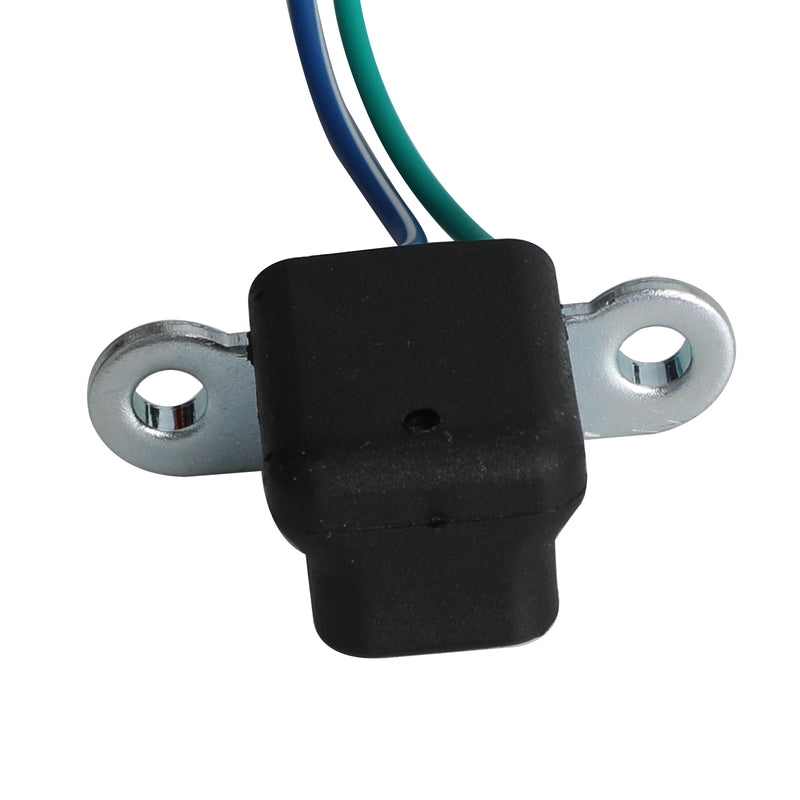

Pick up pulsar coil included.

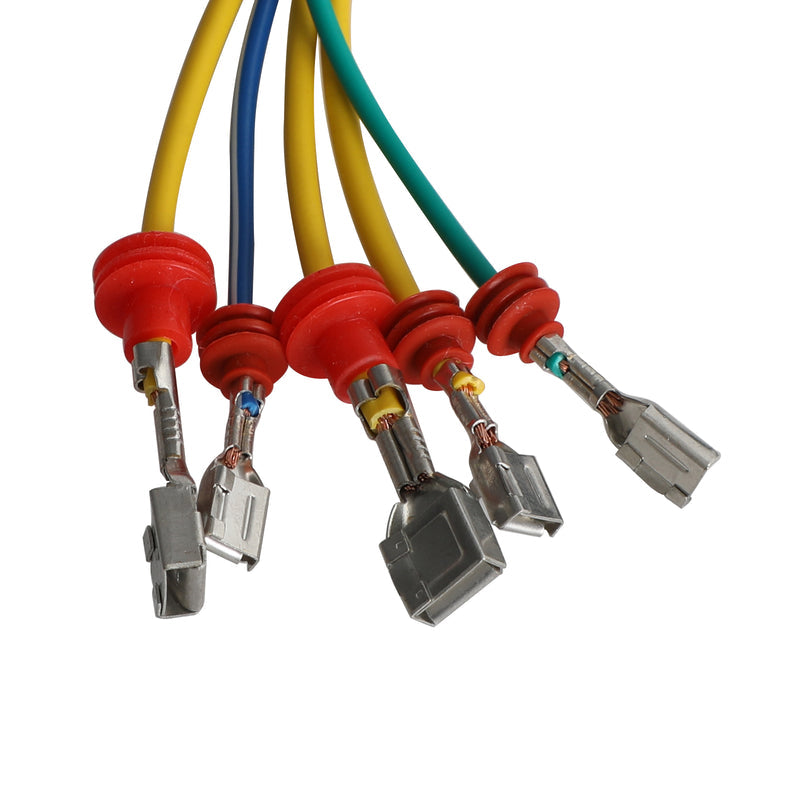

Connector included.
All products shipped are tested.

Package Included:
1x Generator Stator Coil

NOTICE:
Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Shipping:
Free Shipping
Handling time: Ship within 24 hours
Delivery Time: 3-7 business days

Warranty:
1. Condition: 100% Brand New
2. Warranty Period: 1 Years
3. 24-Hour Support: Provide you with timely after-sale support
