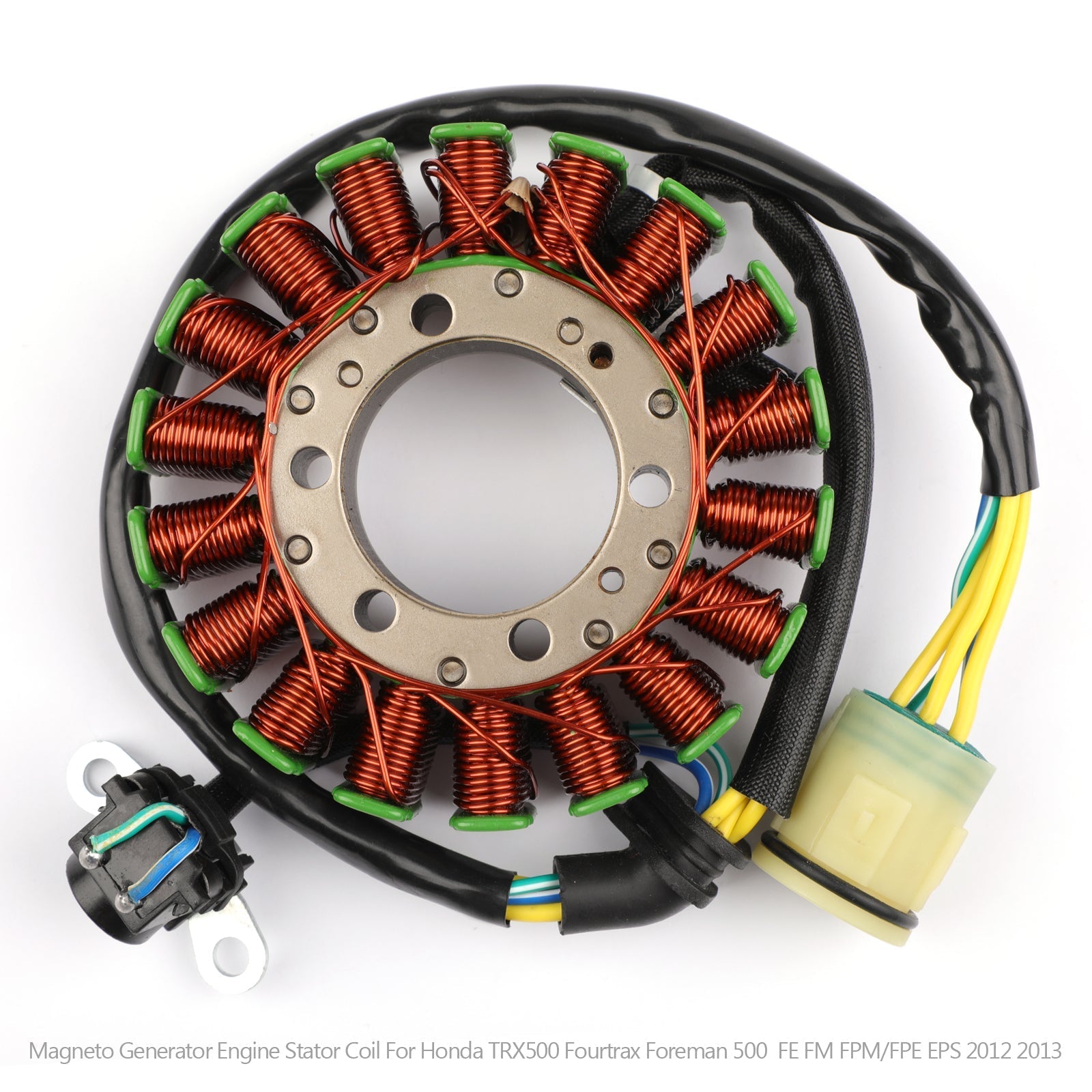

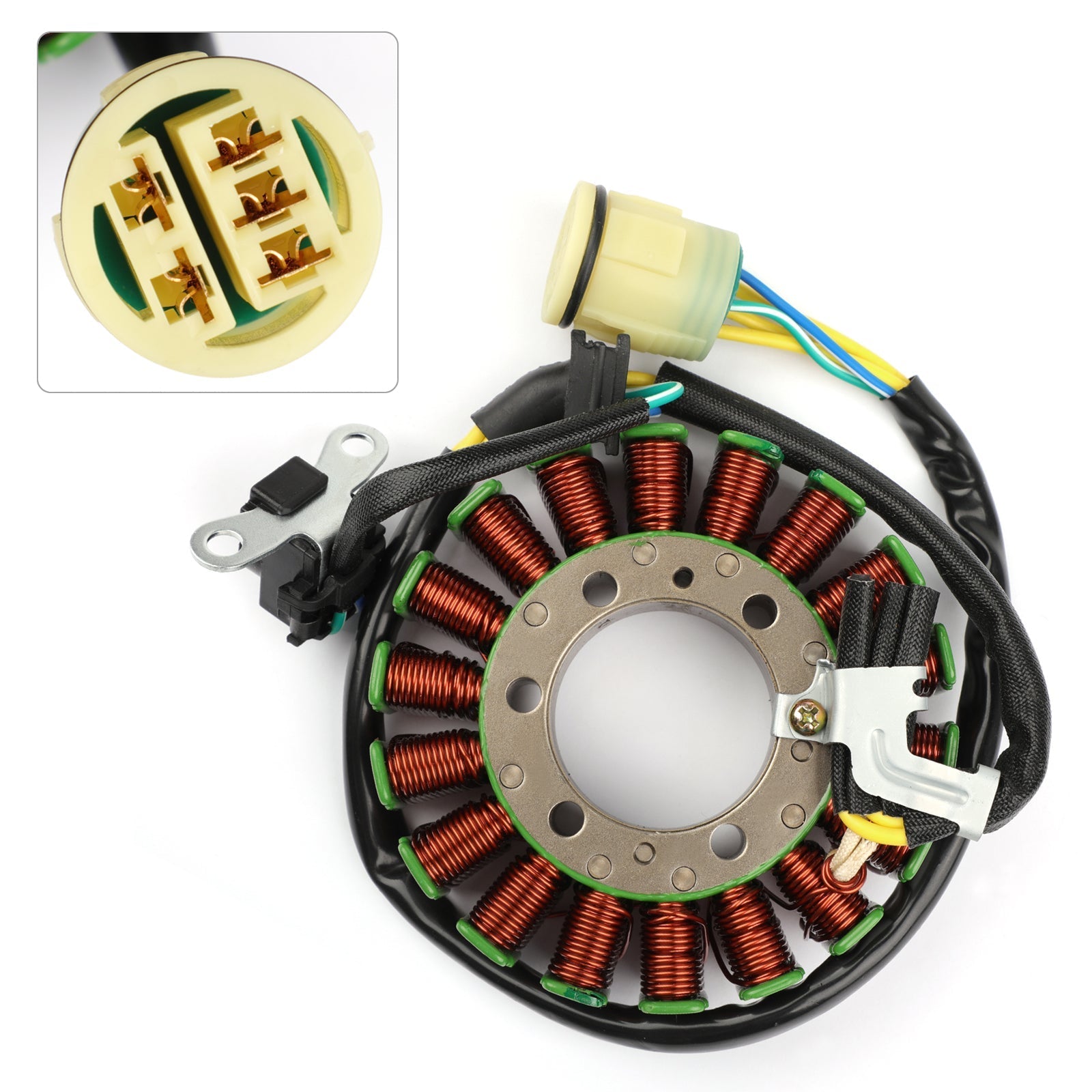

Generator Stator Coil For For Honda TRX500 Fourtrax Foreman 500 FM FE FPE FPM 12-13
Generator Stator Coil For For Honda TRX500 Fourtrax Foreman 500 FM FE FPE FPM 12-13
Couldn't load pickup availability
FEATURES:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included
Connector included
All products shipped are tested
SPECIFICATIONS:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil
OEM Replacement Part Number: 31120-HR0-F01

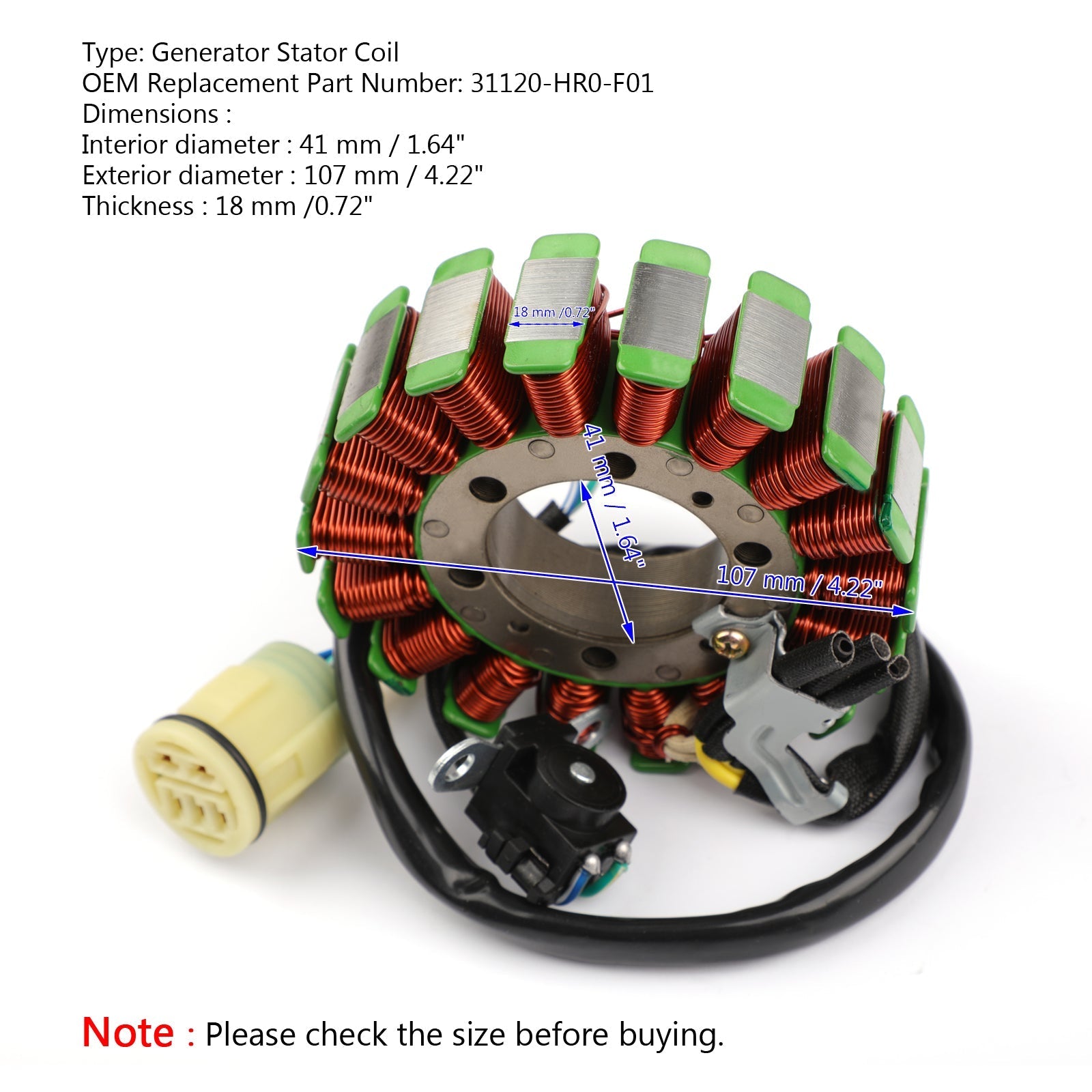

Dimensions:
Interior diameter: 41 mm / 1.64"
Exterior diameter: 107 mm / 4.22"
Thickness: 18 mm /0.72"
Other specifications :
Number of wires: 5
Number of plugs: 1

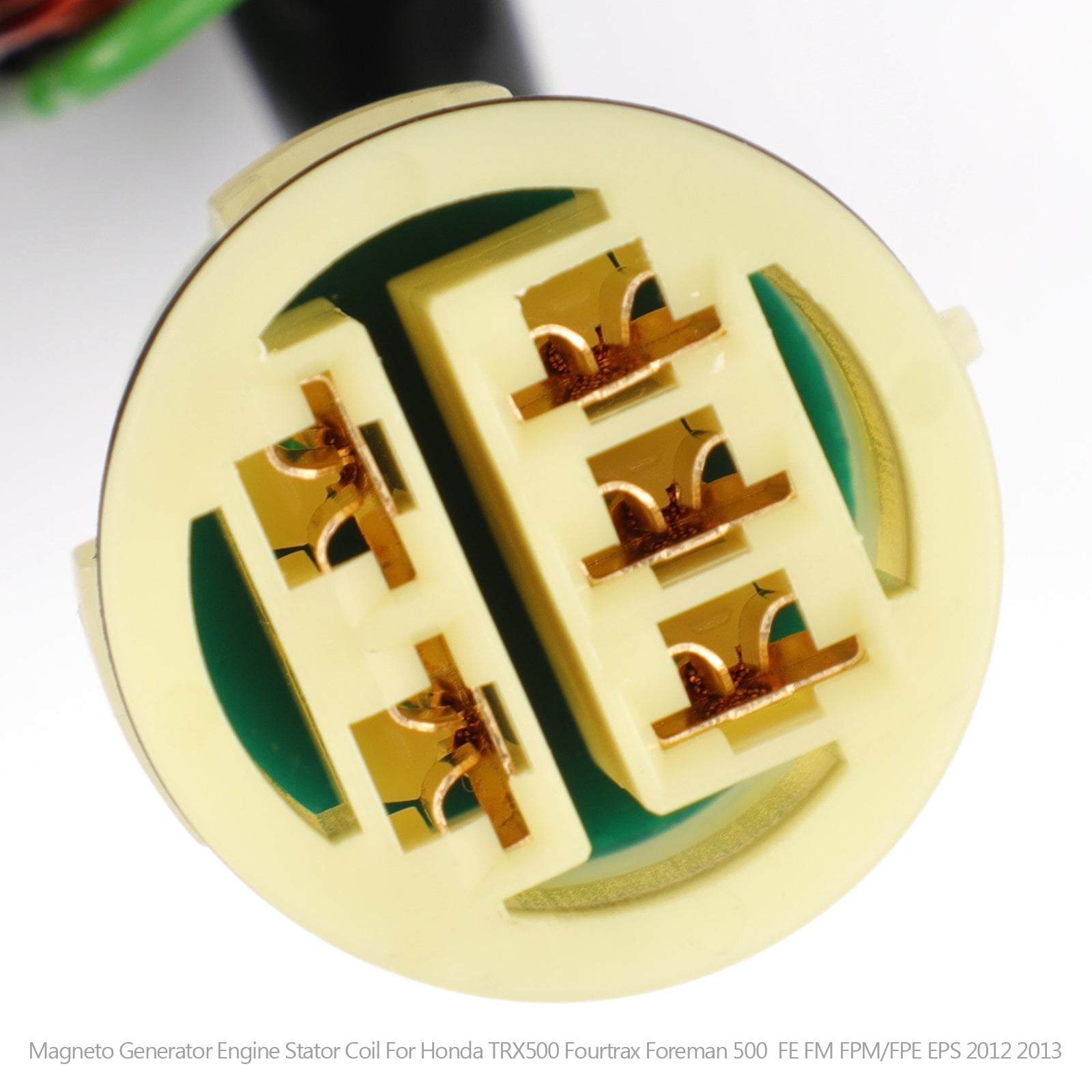

Number of pins: 5
FITMENT:
Honda TRX500 Fourtrax Foreman 500 FE 2012-2013
Honda TRX500 Fourtrax Foreman 500 FM 2012-2013
Honda TRX500 Fourtrax Foreman 500 FPM EPS 2012-2013
Honda TRX500 Fourtrax Foreman 500 FPE EPS 2012-2013
PACKAGE INCLUDED:
1x Generator Stator Coil
NOTICE:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
Shipping:
Free Shipping
Handling?time: Ship within 24 hours
Delivery Time: 3-7 business days
Warranty:
1. Condition: 100% Brand New
2. Warranty Period: 1 Years
3. 24-Hour Support: Provide you with timely after-sale support
