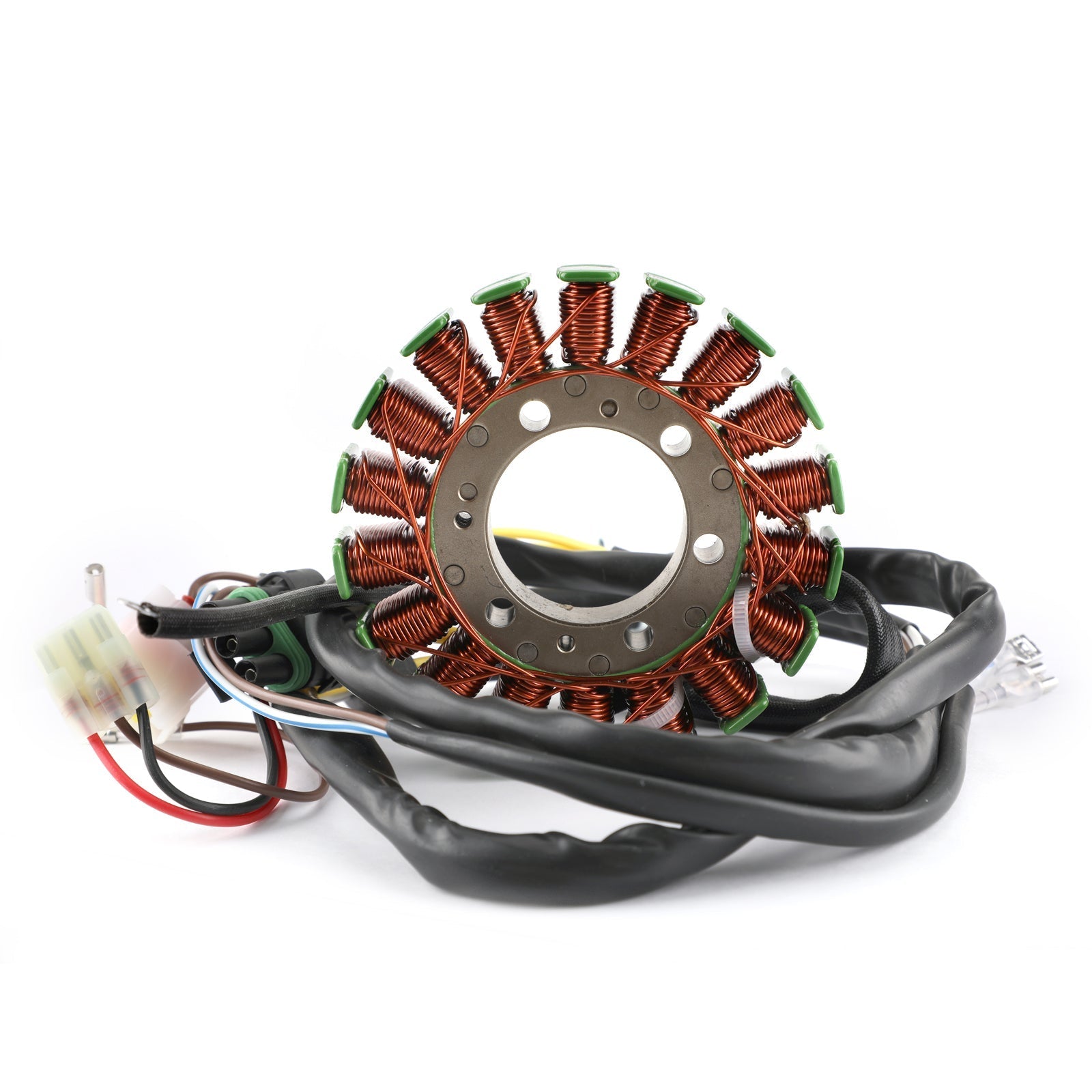

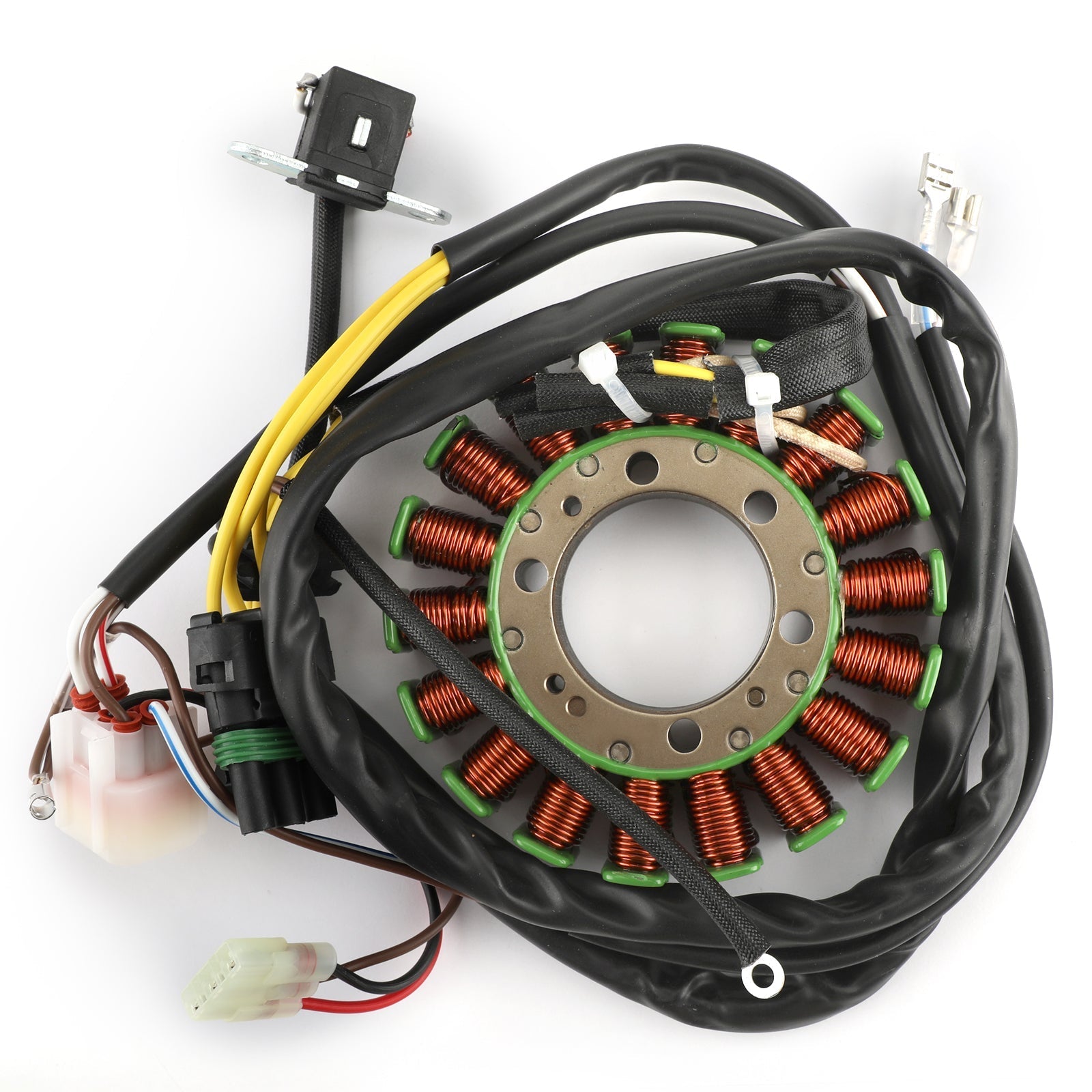

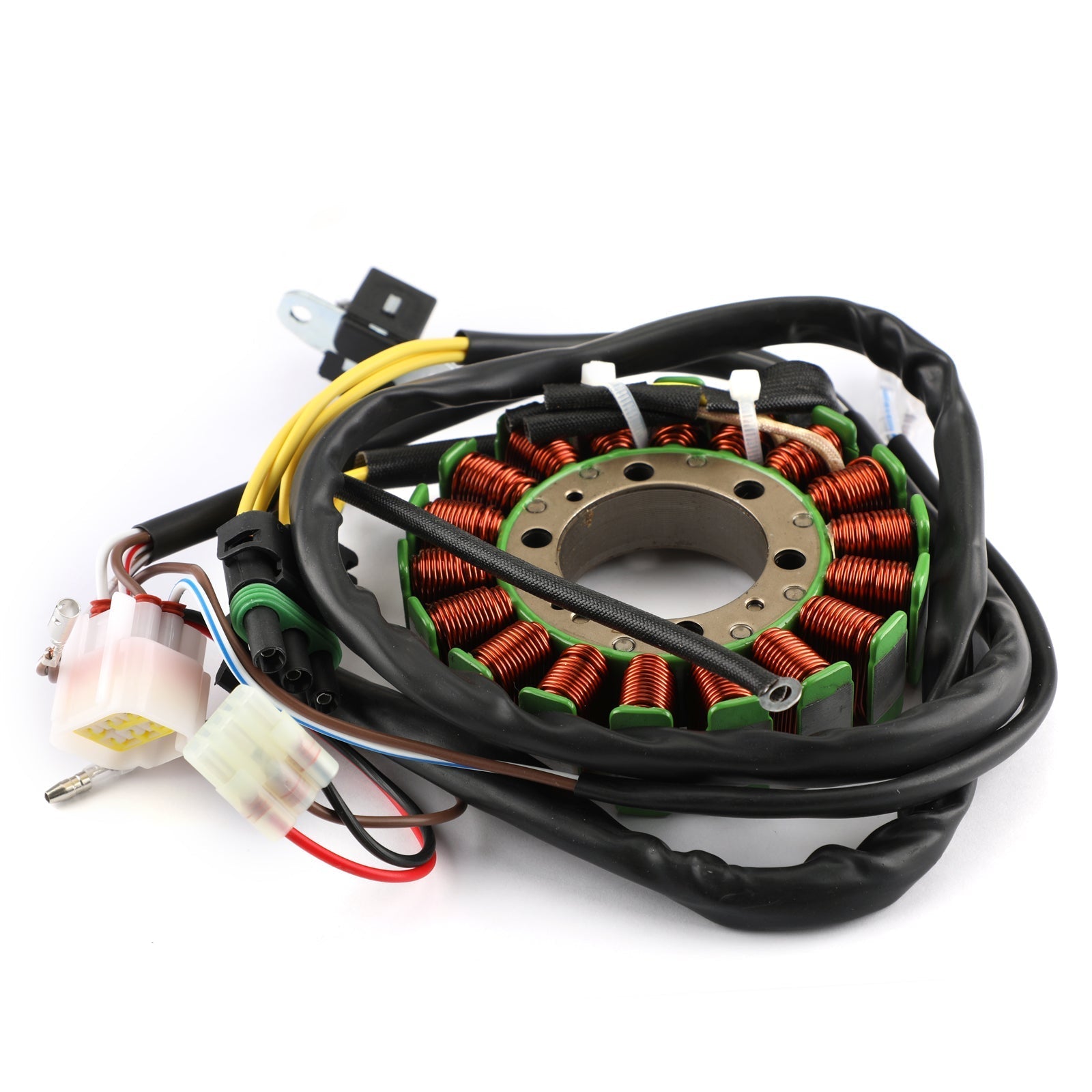

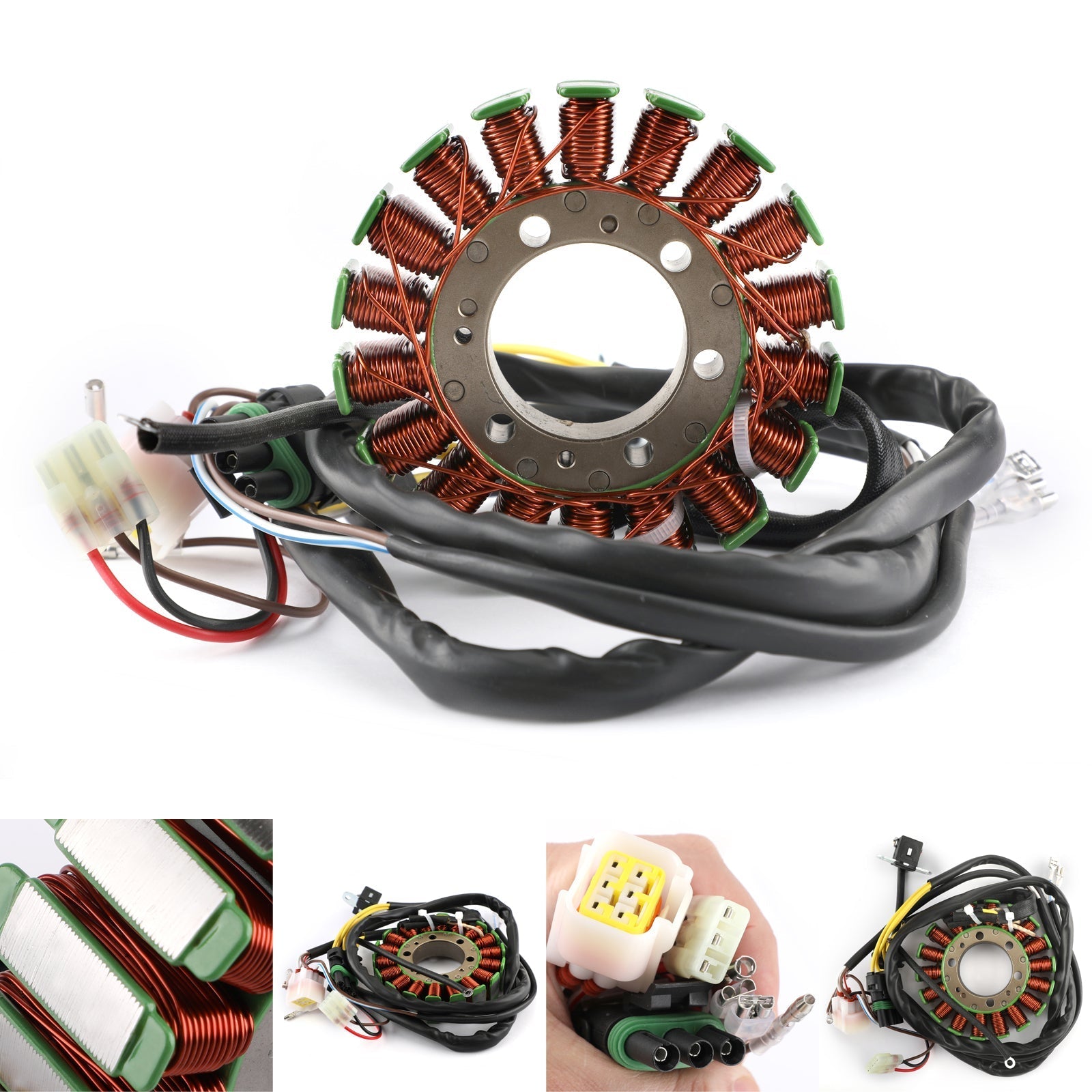

08-14 Polaris Sportsman Ranger 400 500Alternator Stator Coil 3090061

Name: 08-14 Polaris Sportsman Ranger 400 500Alternator Stator Coil 3090061
Brand: Assosary
SKU: M550-A286
Price: 59.89 EUR
Availability: InStock

€59,89 EUR

Sale Sold out

Shipping calculated at checkout.

Quantity

Fitment:
For Polaris Scrambler 500 2x4 Int'l 2009
For Polaris Scrambler 500 4x4 Int'l 2009
For Polaris Scrambler 500 4x4 2009
For Polaris Hawkeye 400 HO 2012-2014
For Polaris Sportsman 400 2008-2014
For Polaris Sportsman 500 HO EFI 2010
For Polaris Sportsman 500 Touring 2010-2013
For Polaris Sportsman 500 HO 2011-2012
For Polaris Sportsman 500 HO Forest 2012-2013
For Polaris Ranger 500 Carb 2009
For Polaris Ranger 400 Carb 2010-2014

Replacement Part Number:
3090061
Please confirm the?Replacement Part Number before ordering.

Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil

Other specifications:
Number of wires: 7
Number of pins: 16
Number of plugs: 3(+4)
Number of fixation holes: 5(+2)

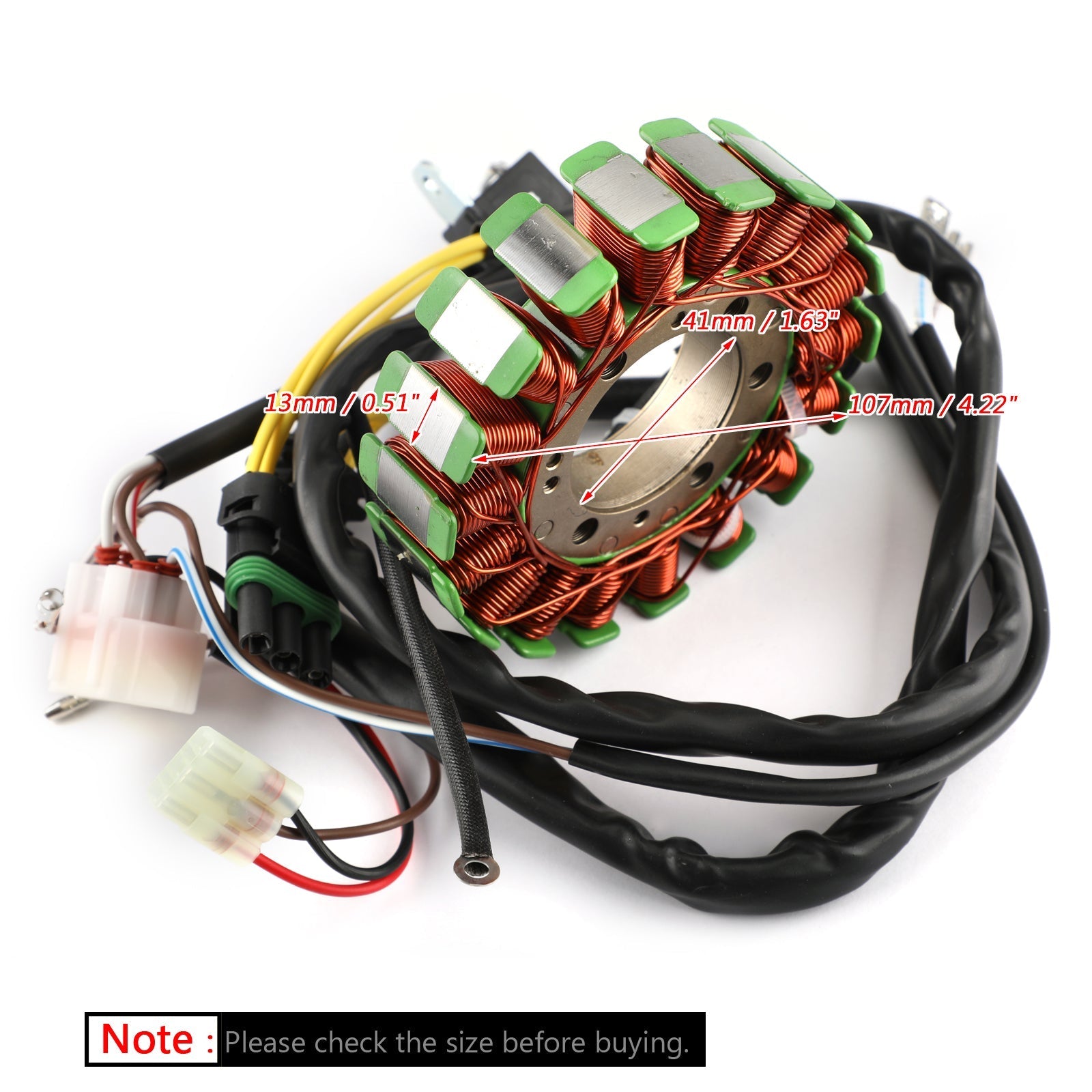

Dimensions:
Interior diameter : 41mm / 1.63"
Exterior diameter : 107mm / 4.22"
Thickness : 13mm / 0.51"

Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.

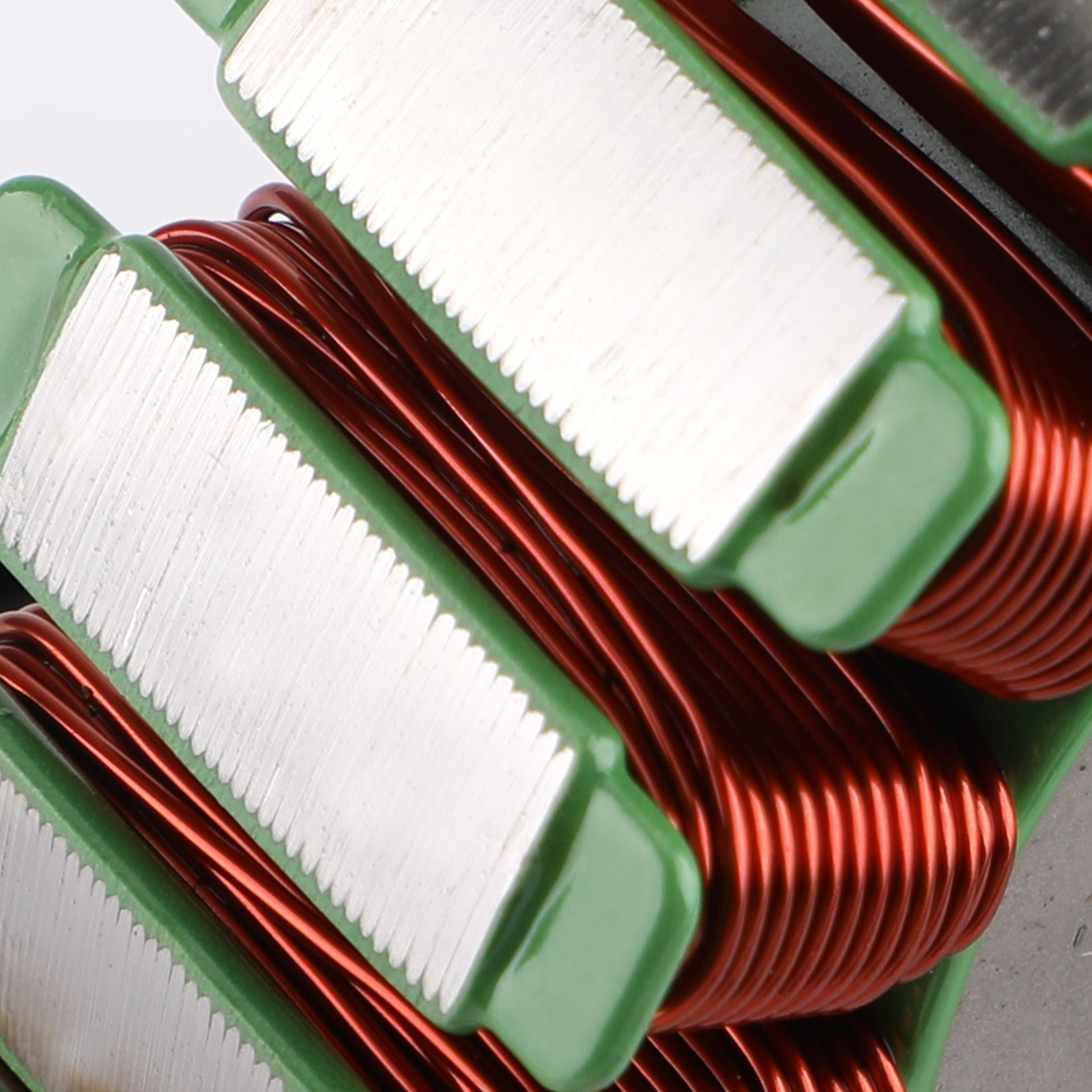

Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included.
Connector included.
All products shipped are tested.

Package Incleded:
1x Generator Stator Coil

Notice:
Before installing your new stator:
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Shipping:
Free Shipping
Item location: Los Angeles, California warehouse
Delivery Time: 3-7 working days

Warranty:
1. Condition: 100% Brand New
2. Warranty Period: 1 Years
3. 24-Hour Support: Provide you with timely after-sale support
