70mm Cylinder Piston Gasket Top End Rebuild Kit 233cc For Honda CRF150F CRF 150 F 2006-2019
70mm Cylinder Piston Gasket Top End Rebuild Kit 233cc For Honda CRF150F CRF 150 F 2006-2019
Couldn't load pickup availability
Features:
If your cylinder blows through, the compression is too low, or even a piston seizure has occurred, then this kit is exactly the right thing for you.

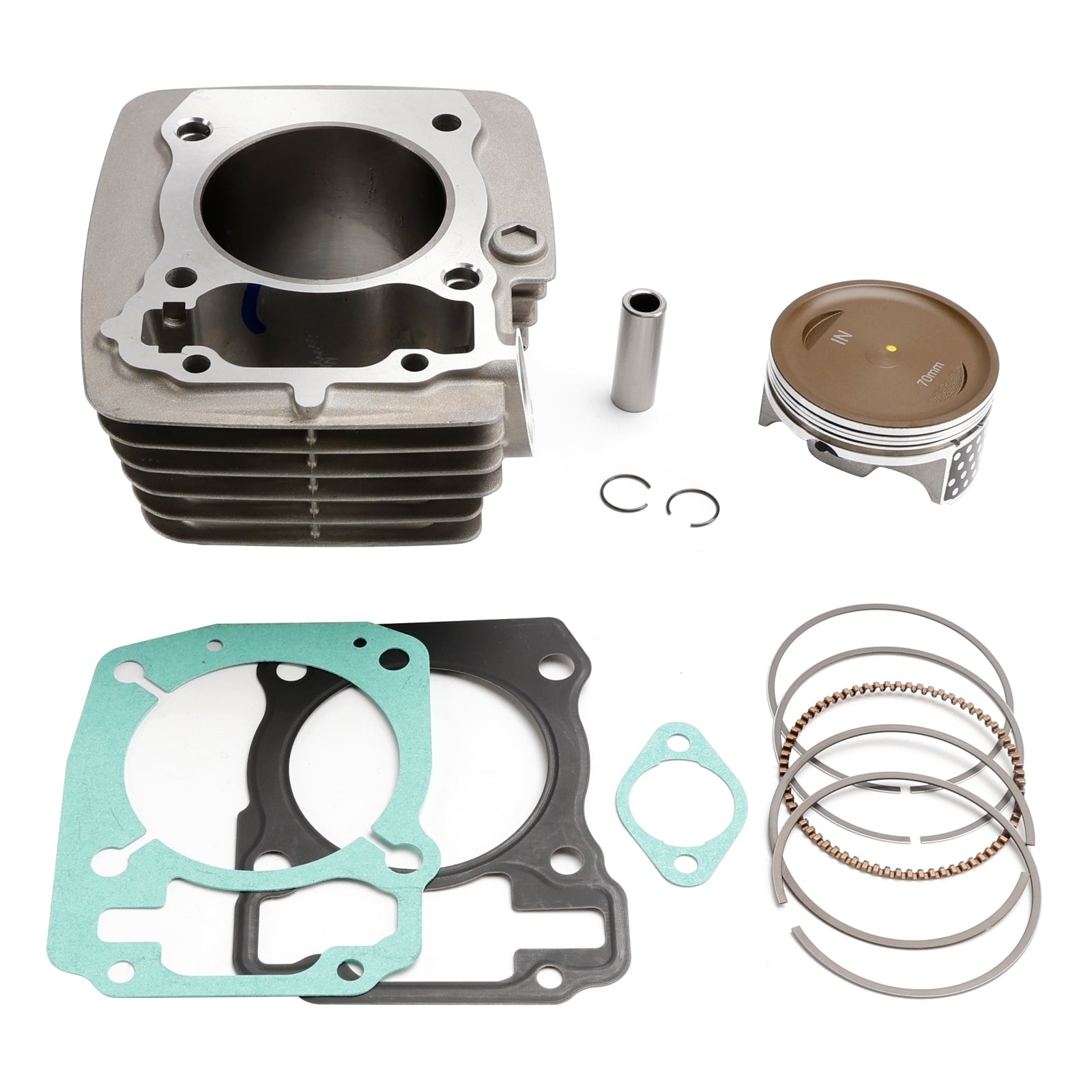

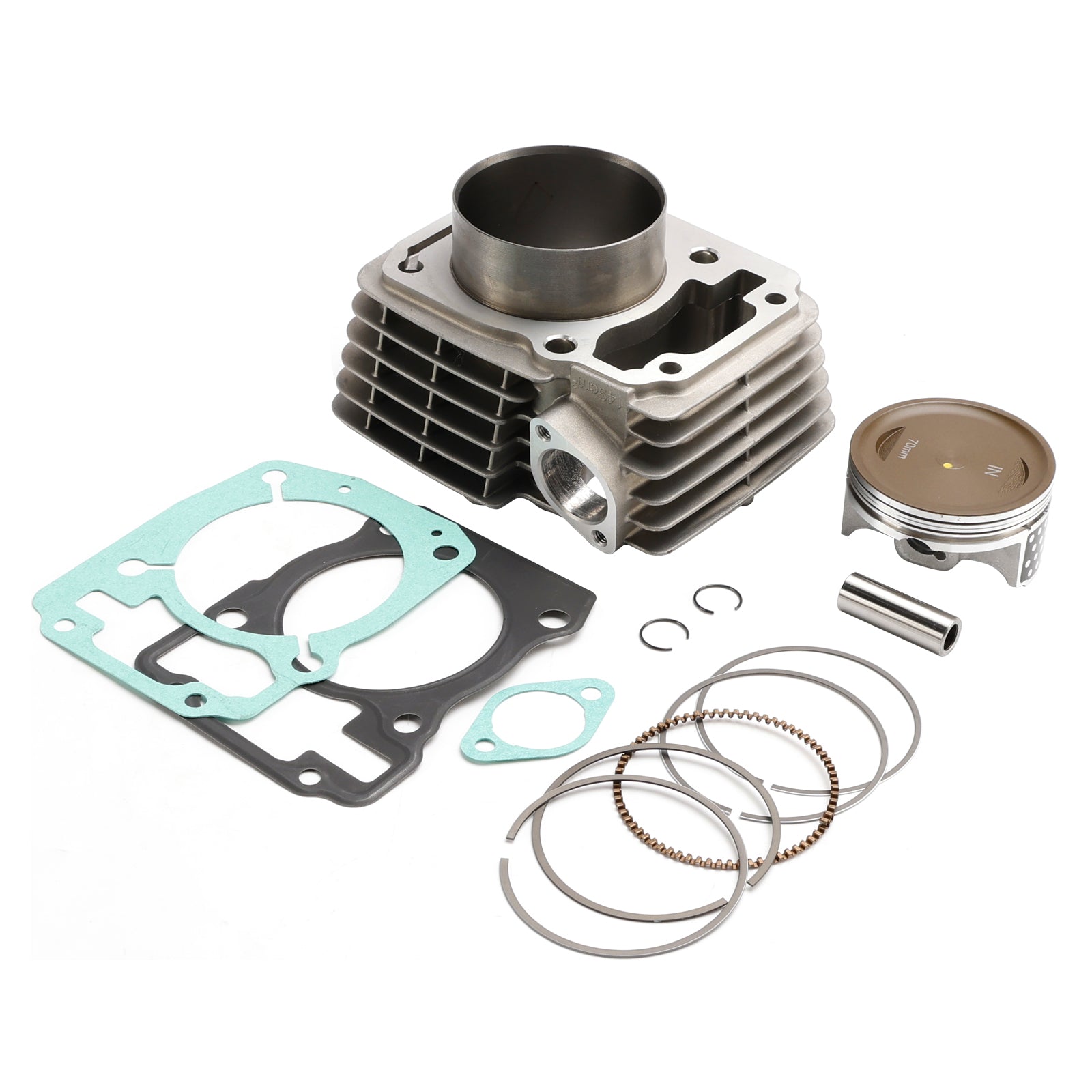

Kit includes cylinder, forged piston, rings, pin, clips & top end gasket kit (you get exactly what is pictured).

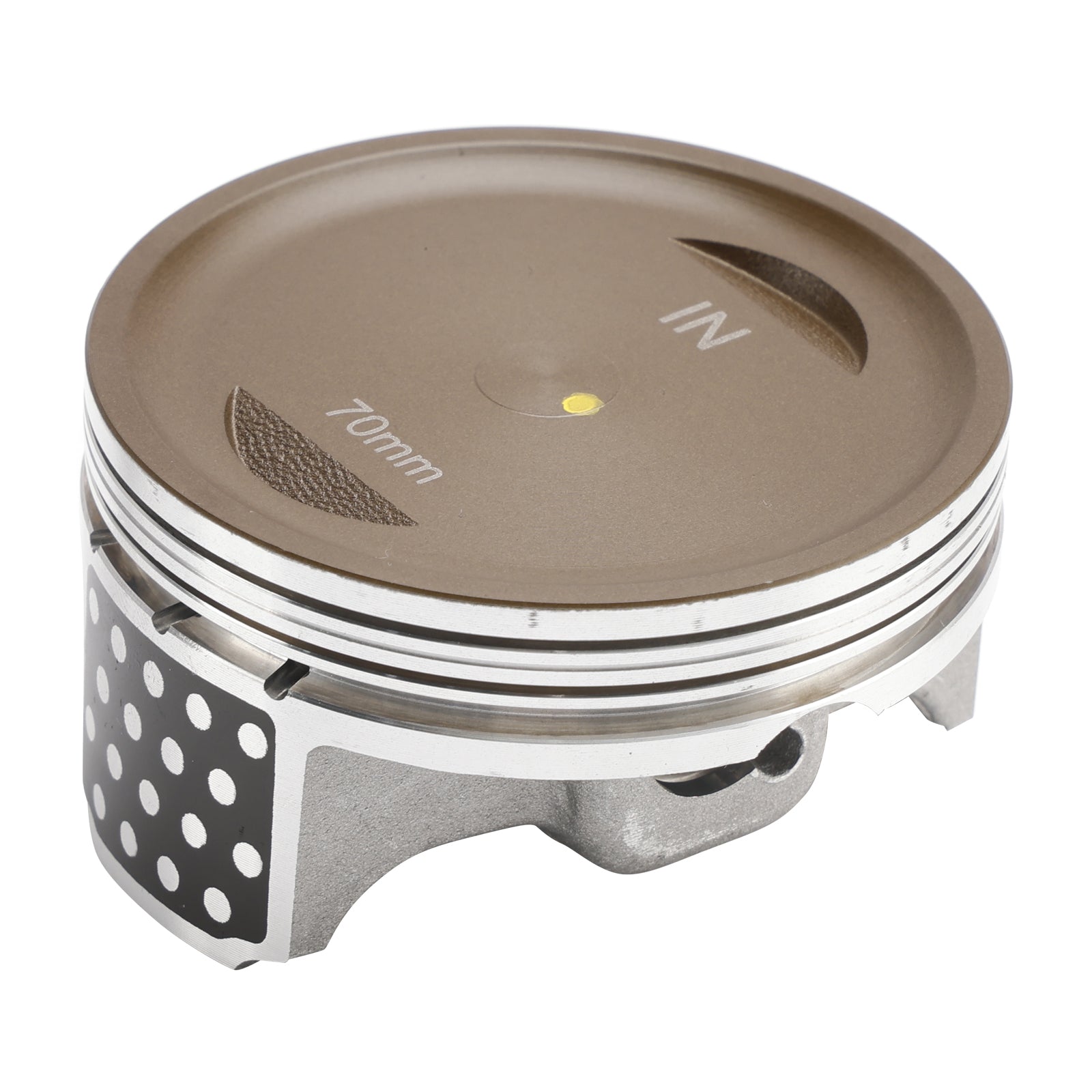

Piston is anodized for superior heat resistance and longer lifespan.
The gaskets use performance materials to increase durability and provide greater reliability.
Includes all gaskets pictured to rebuild top end.
Kit is for big bore size - 70 mm, 14mm steel piston pin.
Engine 233cc block with 149CC markings.
This kit is excellent as a low-cost replacement for defects in the original cylinder.
Specifications:
Condition: Aftermarket 100% Brand New
Quantity: 1 Set
Material: Aluminum, Steel
Displacement: 233cc
Bore Type: Big Bore
Bore diameter: 70mm
Pin diameter: 14mm
Replacement Part Number:
Cylinder: 12100-KPT-A00
Cylinder Base Gasket: 12190-KSP-910, 12191-KWK-900, 12191-KYA-C00
Cylinder Head Gasket: 12251-KRM-872, 12251-KRM-B41
Chain Tensioner Gasket: 14560-KRM-840
Fits Make/Model/Year:
Fit for Honda CRF150F CRF 150 F 2006-2019
Fit for Honda XR150 XR150L XR150LEK Shadow 2014-2018
Package Includes:

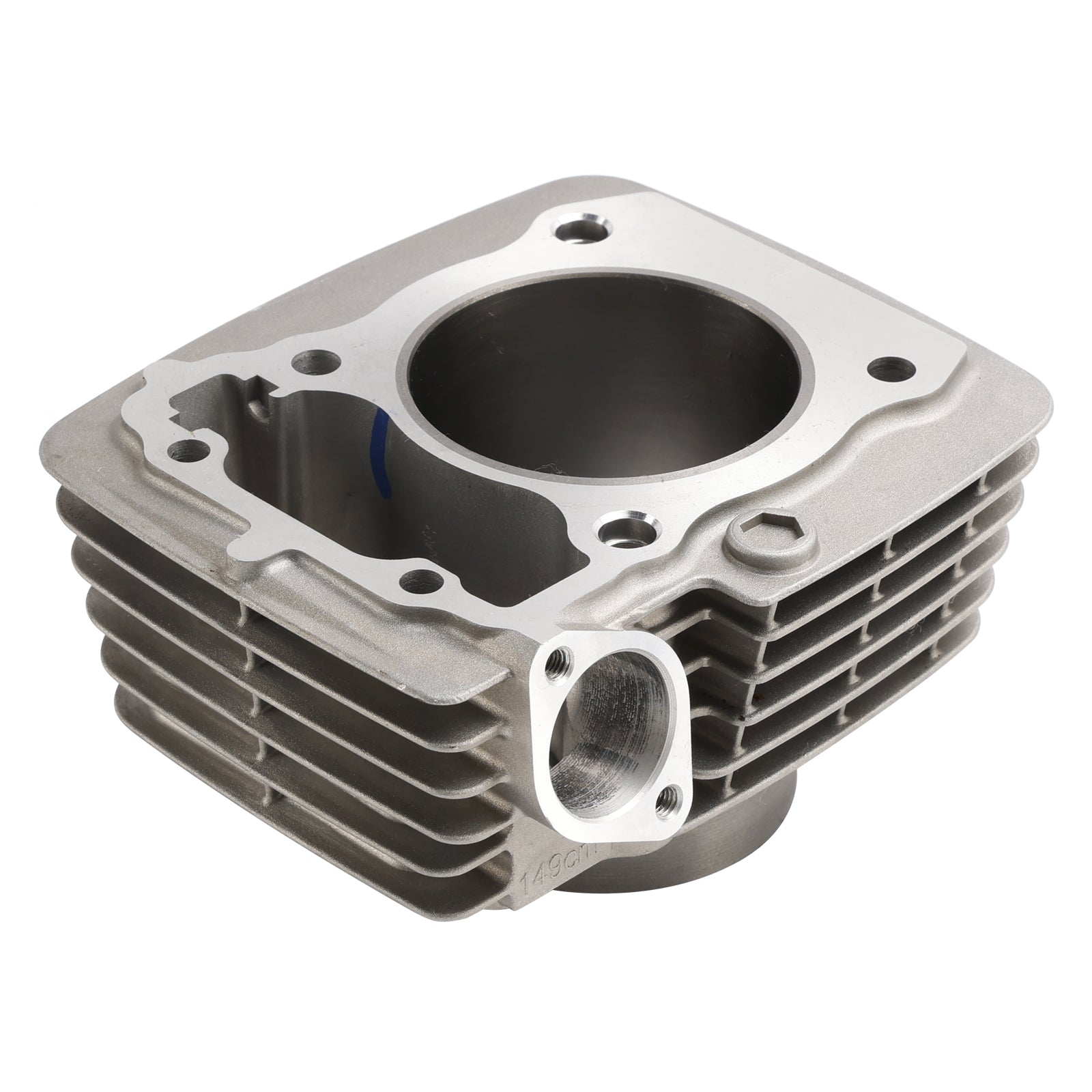

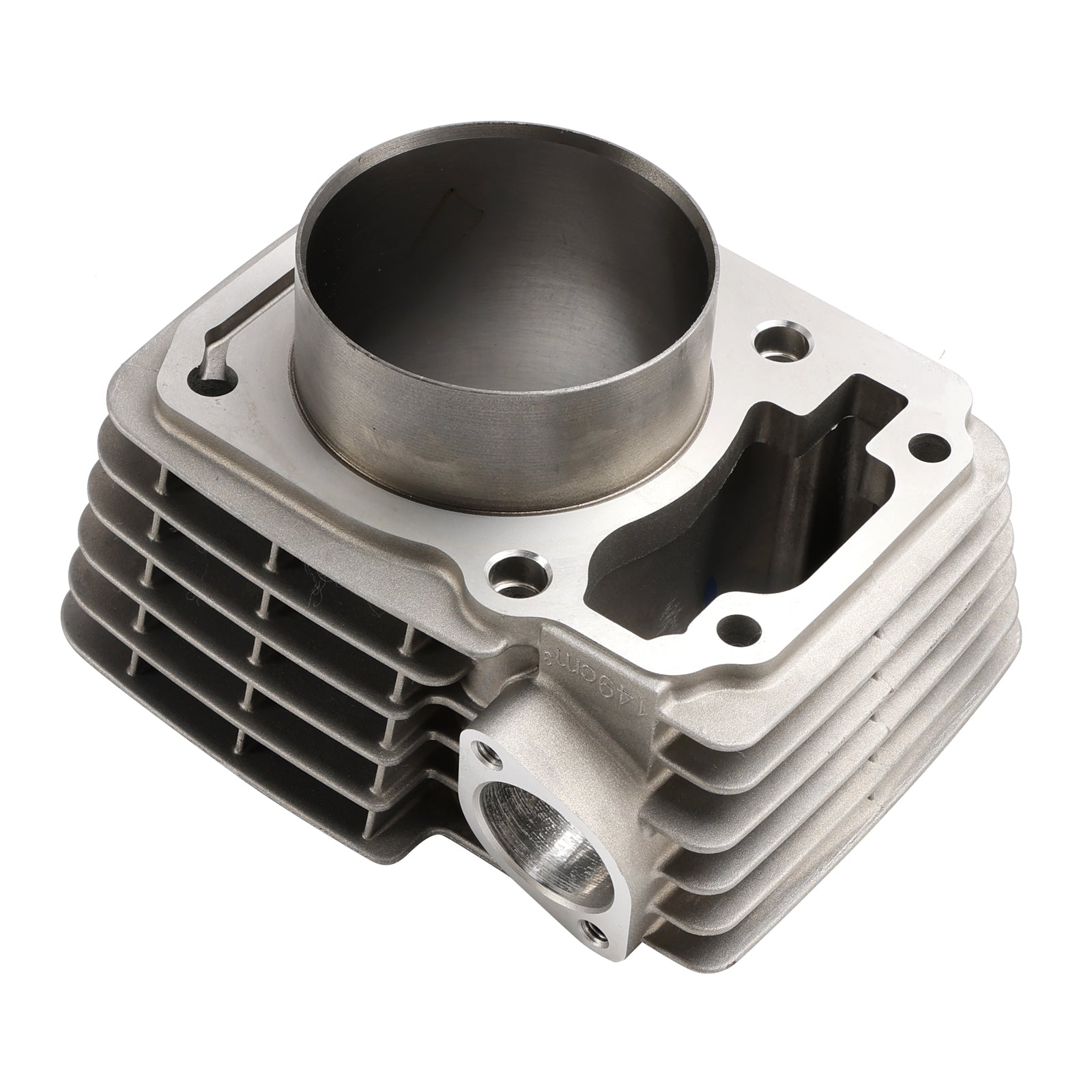

1x 70mm Cylinder

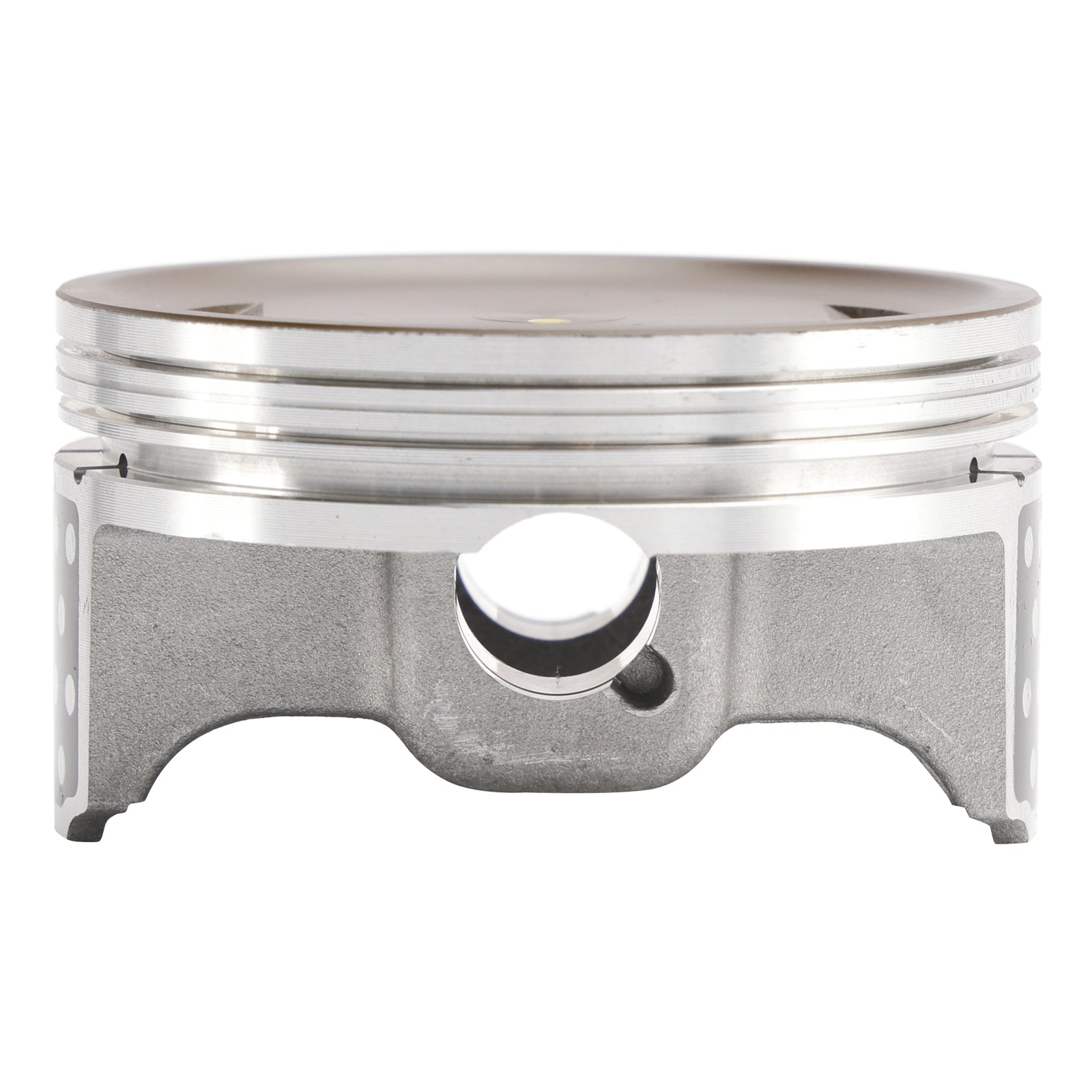

1x Piston

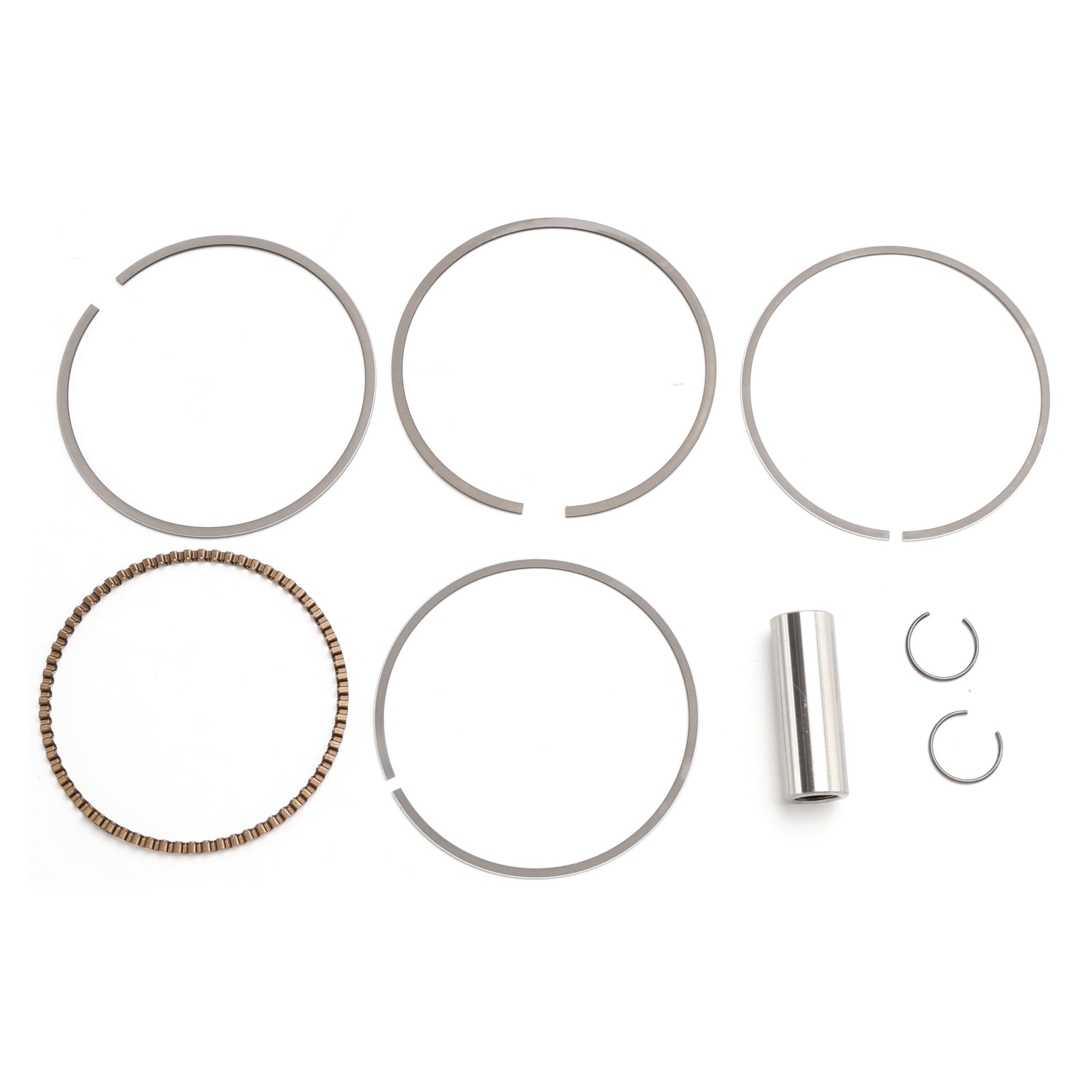

1x Piston Ring Set
1x 14mm Wristpin
1x Circlip(2)

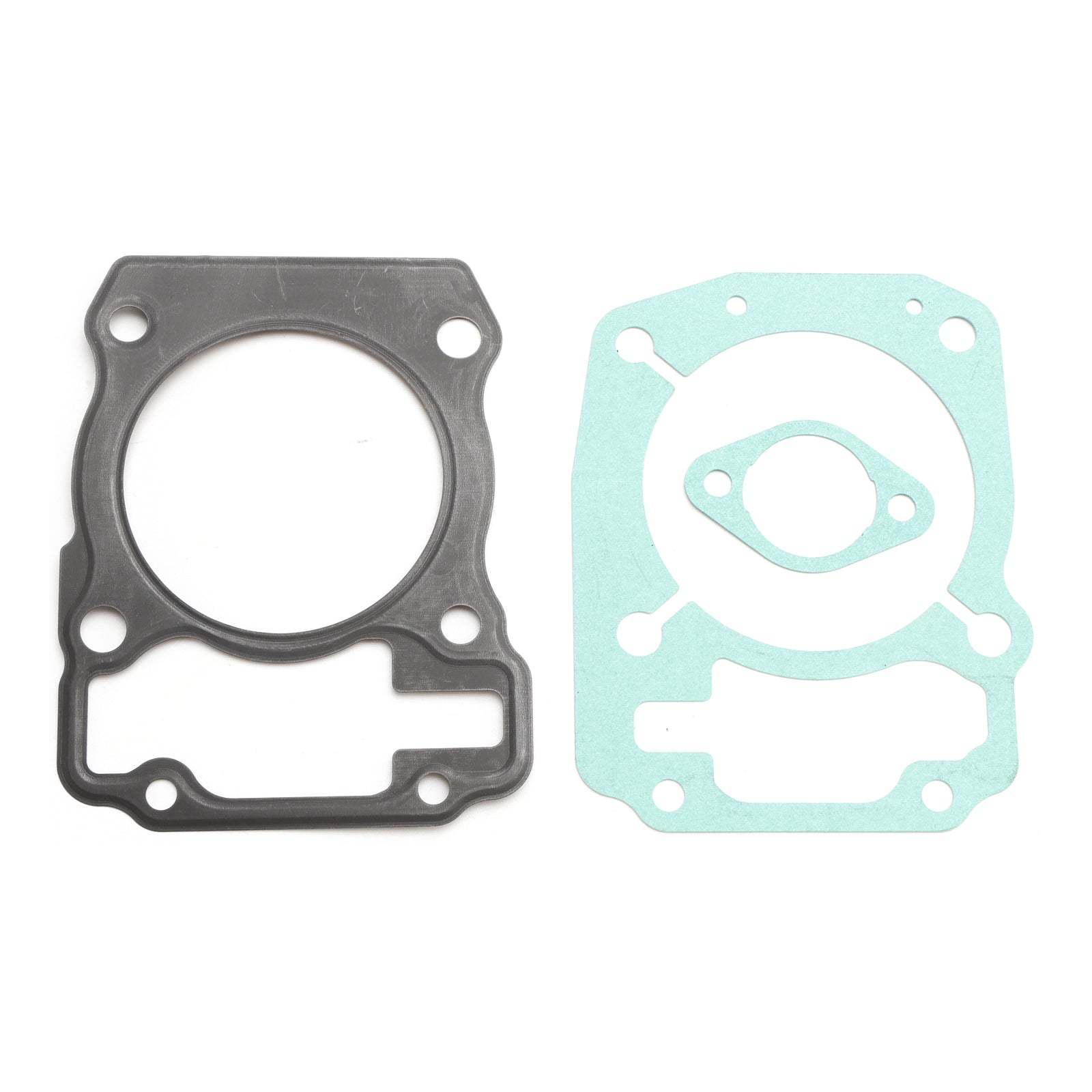

1x Cylinder Base Gasket
1x Cylinder Head Gasket
1x Chain Tensioner Gasket
