65W Mini Hot Plate PCB Board Soldering LCD Display Soldering Heater Station, Type B
65W Mini Hot Plate PCB Board Soldering LCD Display Soldering Heater Station, Type B
Couldn't load pickup availability
Feature:
1: Ultra mini sized intelligent constant temperature heating table.
2: Eliminate redundancy and retain sufficient effective heating area, greatly saving energy consumption and heating time.
3: Efficient heating area, reduced energy consumption, widely applicable fields, screen display and temperature control.
4: Concentrate preheating of operating parts to reduce damage to nearby components.
5: USB Type-C interface+PD protocol for faster heating.
Specifics:
Condition: 100% Brand New
Input interface: Type-C
Power supply: PD 65w 20v 3.25A (recommended for PD65w)
Temperature range: 0 �� C~350 �� C (the lowest temperature is the ambient temperature, which can only be raised but not lowered)
Shell: High quality 3D printing shell, no layering
Product size: length: 5.6 x 5.6 x 3.5 cm/2.20 x 2.20 x 1.38 inch
Operating instructions:
Double button simultaneous pressing: heating or stopping heating
Double key long press to enter the menu interface or exit
Double key press to confirm
Attention: It is recommended that the temperature not exceed 250 ��?
Common problem:
Q: How many volts does the power supply require?
Answer: A charger that supports the PD protocol with a voltage of 20V 3.25A is required,
and theoretically it can support the PD protocol with a voltage of 20V
Q: Why does the heating start with a black screen and restart?
Answer: This issue triggered the charger protection and requires replacement with another charger or data cable,
most of which caused the charger model to be recorded
Note:
1.Please allow 1-3mm difference due to manual measurement.
2.Due to the light and screen difference, the item's color may be slightly different from the pictures.

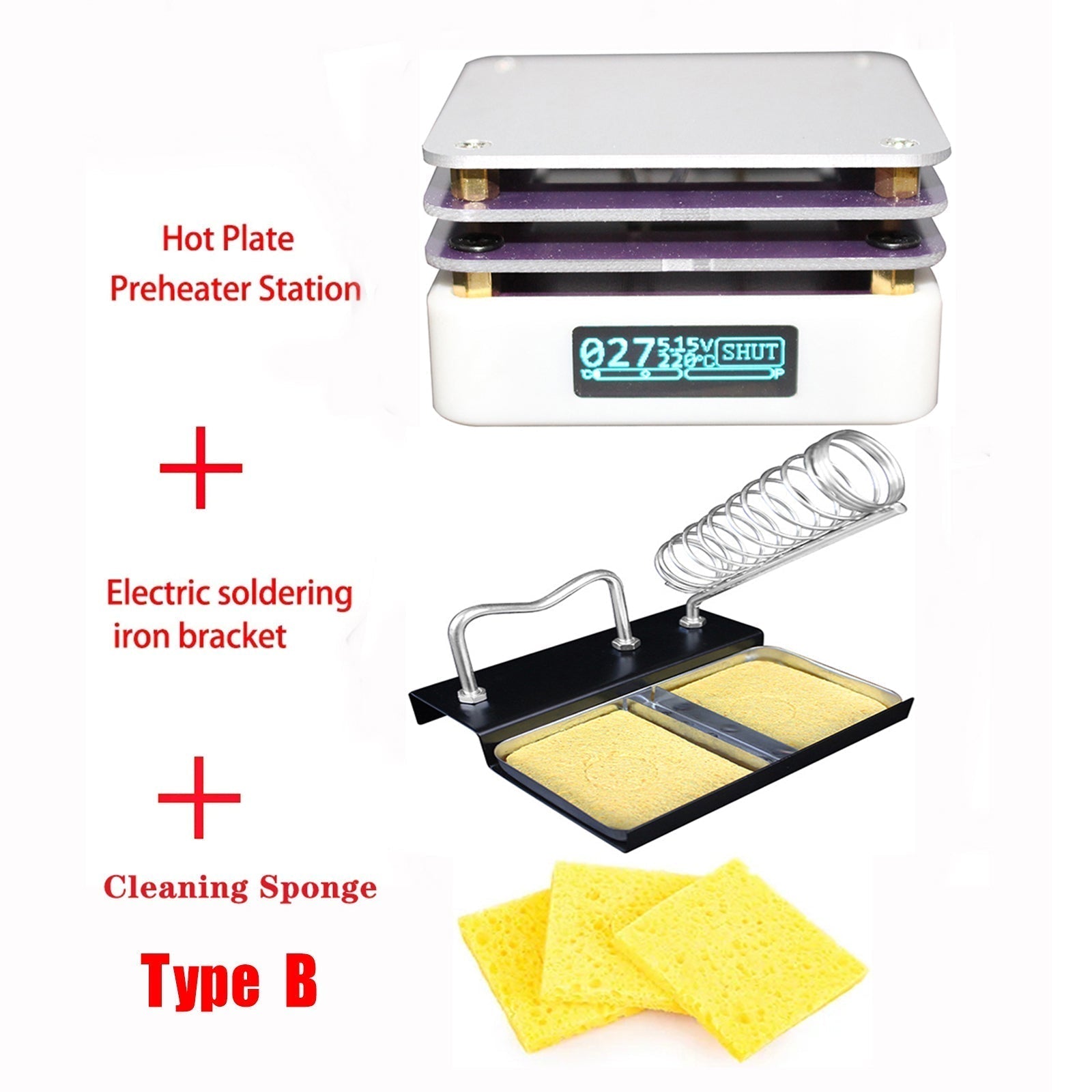

Package Included: There are two options
Option 1: Heating table X1; Cleaning sponge X3
Option 2: Heating table X1; Soldering iron stand X1; Cleaning sponge X3
Warranty:
Returns: Customers have the right to apply for a return within 60 days after the receipt of the product
24-Hour Expert Online: Solve your installation and product problems
