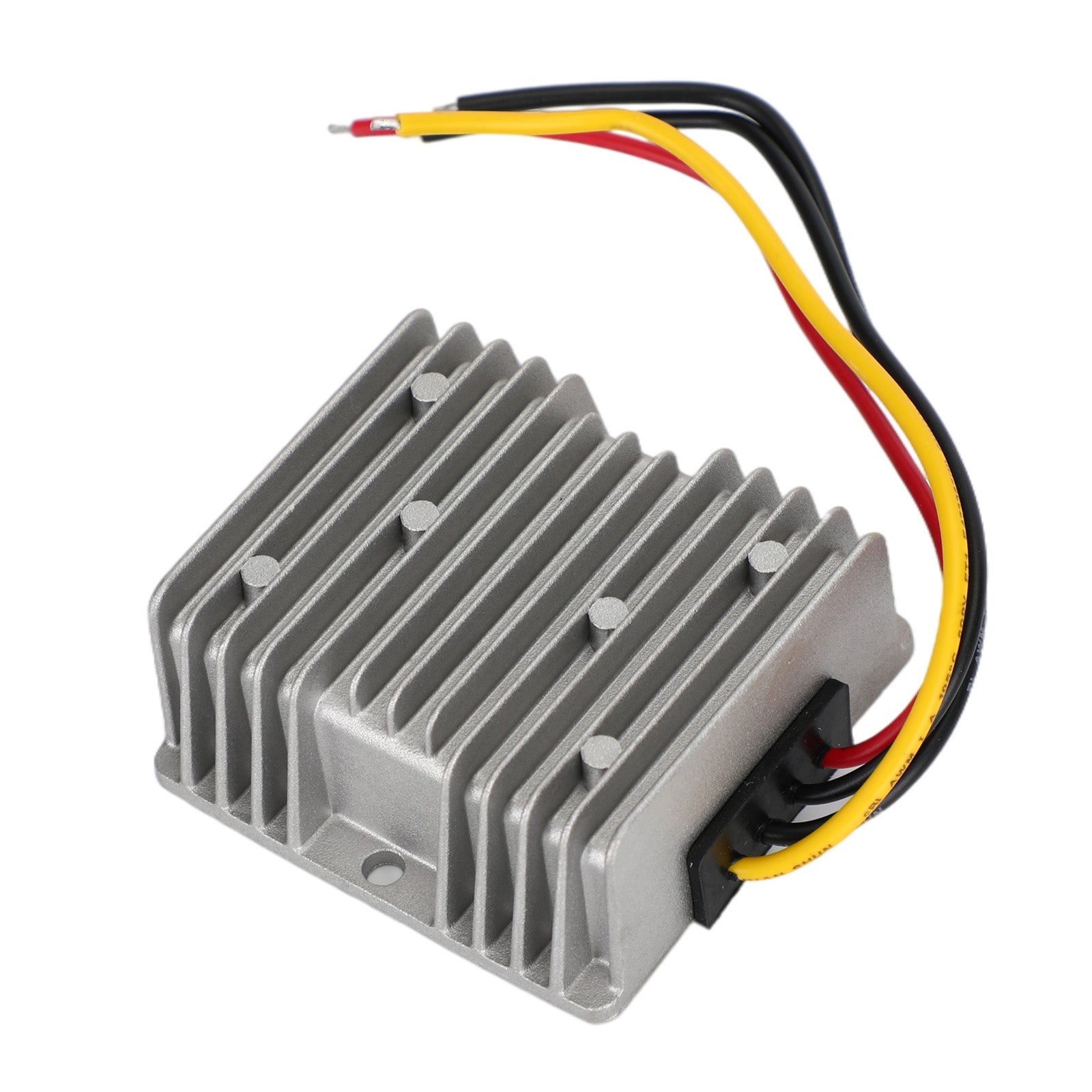

60V to 24V 5A Step Down DC/DC Power Converter Regulator WaterProof
60V to 24V 5A Step Down DC/DC Power Converter Regulator WaterProof
Couldn't load pickup availability
Feature:
1:High quality thermal silica potting, waterproof, dust-proof, shockproof effect
2:Overcurrent, overtemperature, short circuit protection, Self-Recovery
3:With overvoltage,overcurrent overheating protection
4:Easy to install.
Specifics:
Condition: 100% Brand New
Input voltage: DC 60V
Input voltage Range: 40V - 72V
Output voltage: 24V
Output Current: 5A
Output power: 120W
Soft start time: ~500mS
Conversion efficiency: >85%
Load regulation: +/- 2%
Voltage regulation: +/- 1%
Operating temperature: -40 ��?~ +85 ��?
Size: 74 x 74 x 32 mm/2.91inches*2.91inches*1.26inches
Weight:approx.260g
Note:
1.Please make sure there is sufficient input supply voltage and power,in order to ensure that the module can output enough voltage and power.
2.Please take with an average load, do not merge,if there are multiple output cables in the output port.
3.You need to pay attention to make the power module cool,if output is up to the maximum current value.
4.In strict accordance with characters wiring, fuse the input voltage polarity,must not reversed, or it may damage the power supply module, when the output voltage polarity is reversed, it may damage electrical equipment
5.Wide range of applications(within voltage range): motors, stereos, navigation systems, monitoring, displays, air conditions, electric fans, solar energy devices, photovoltaic energy devices, DVD, LED lights, pumps, and industrial equipments etc...
Package Included:
1x DC/DC Converter Regulator
